Voldoende vermogen. Geschikt voor langeafstandsritten.

15,6 Ah Batterijcapaciteit
90 km Maximaal bereik (ondersteuningsmodus)

Let op: De maximale actieradius wordt bereikt onder de volgende omstandigheden: volledig opgeladen accu; optimale bandenspanning; 70 kg belasting; constante snelheid van 15 km/u; temperatuur van 20-25 °C; windkracht lager dan 3 m/s; droge, verharde, vlakke en hellingsvrije asfalt-/betonwegen; en een rondrit van meer dan 1 km om een complete gegevensverzameling te garanderen.

5 niveaus van trapondersteuning

A Total Length 72.4"
B Handlebar Height 46.1"-49.2"
C Wheelbase 42.9"
D Min. Seat Height 32.7"
E Max. Seat Height 39.8"
F Standover Height 18.1"
G Effective Top Tube 22.1"
H Wheel Size 26"
I Down Tube 29.5"
J Seat Tube 18"
K Angle b/w DT & ST 75°
L Handlebar Length 27.6"
M Reach 14.6"
N Stack 25.6"
O Head Tube Angle 71°

Specificatie

Basisspecificatie

Nettogewicht: 26,1 kg
Uitgevouwen formaat: 1840x700x1170 mm
Afmetingen van de lijst: 26"x18"

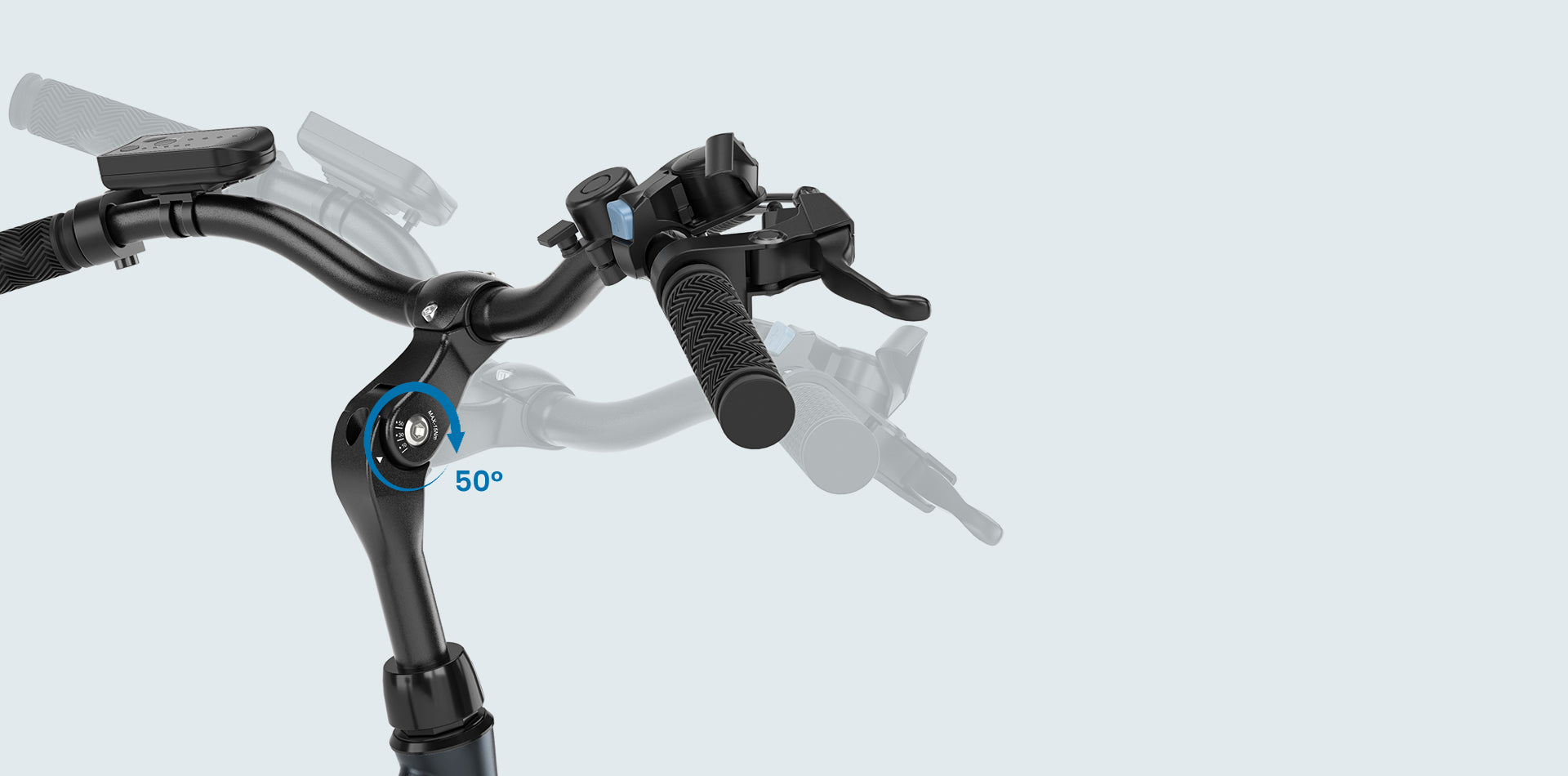

Stuurlengte: 700 mm (27,6")
Aanbevolen lichaamslengte: 155-195 cm (5' 1"-6' 5")
Maximale belasting van de fiets: 120 kg
Maximale snelheid: 25 km/u
Maximale actieradius: 90 km (in de assistentiemodus)

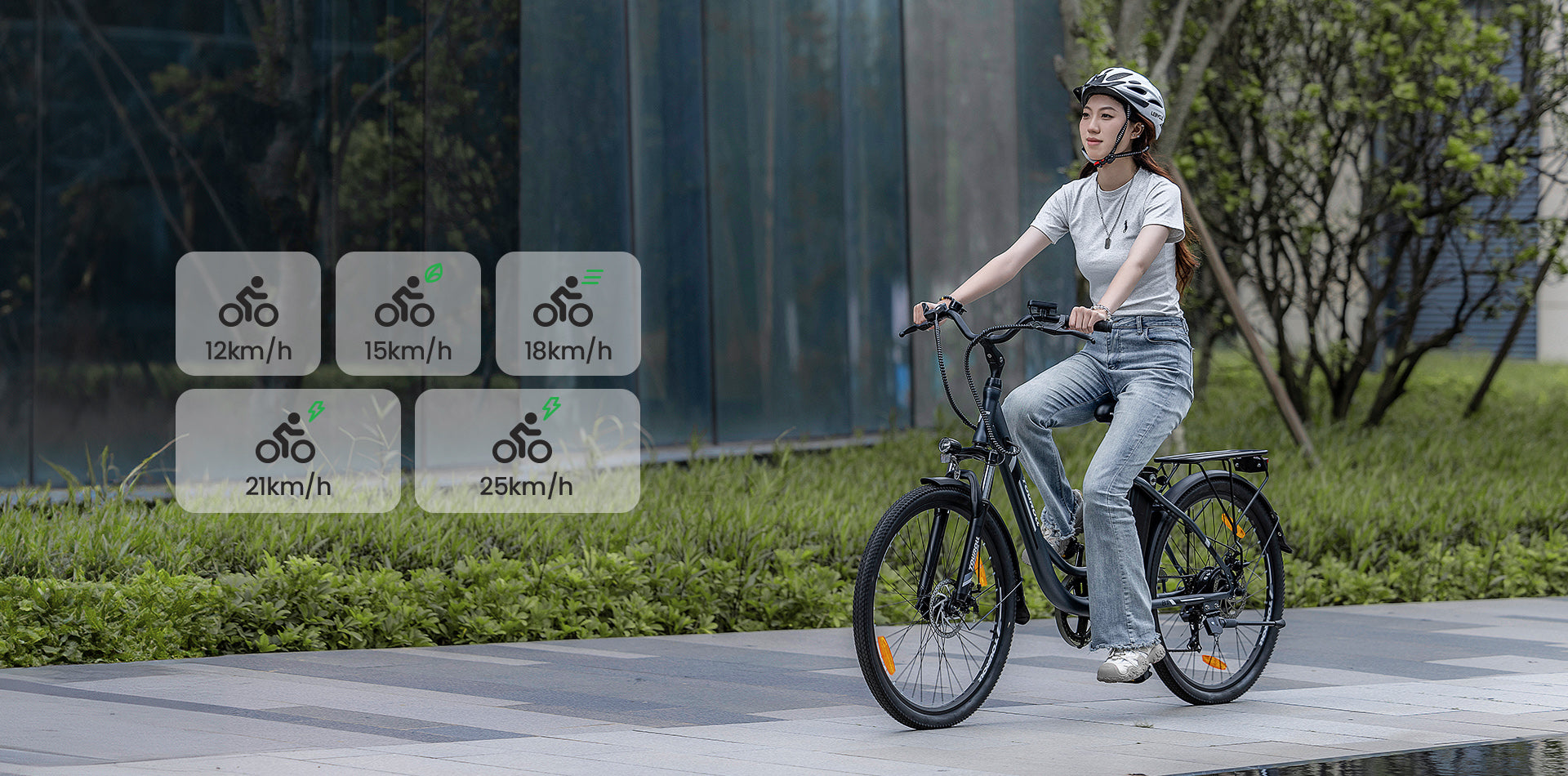

Trapondersteuningsniveaus: 12/15/18/21/25 km/u
Loopmodus: 4 km/u
Waterdichtheidsniveau: IPX4
Materiaal van het frame: STL

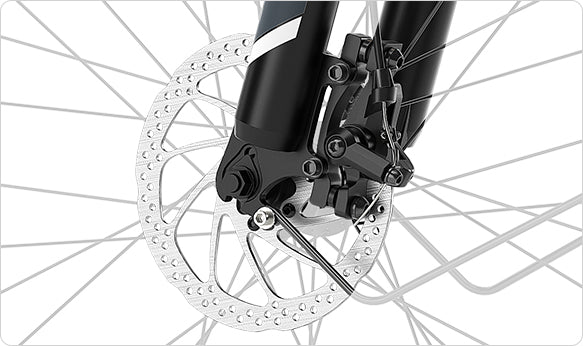

Remsysteem: Schijfremmen en handrem
Vering: Voorvork met vering

Motor

Nominaal vermogen/spanning: 250W/DC36V
Maximaal uitgangskoppel: 40 Nm

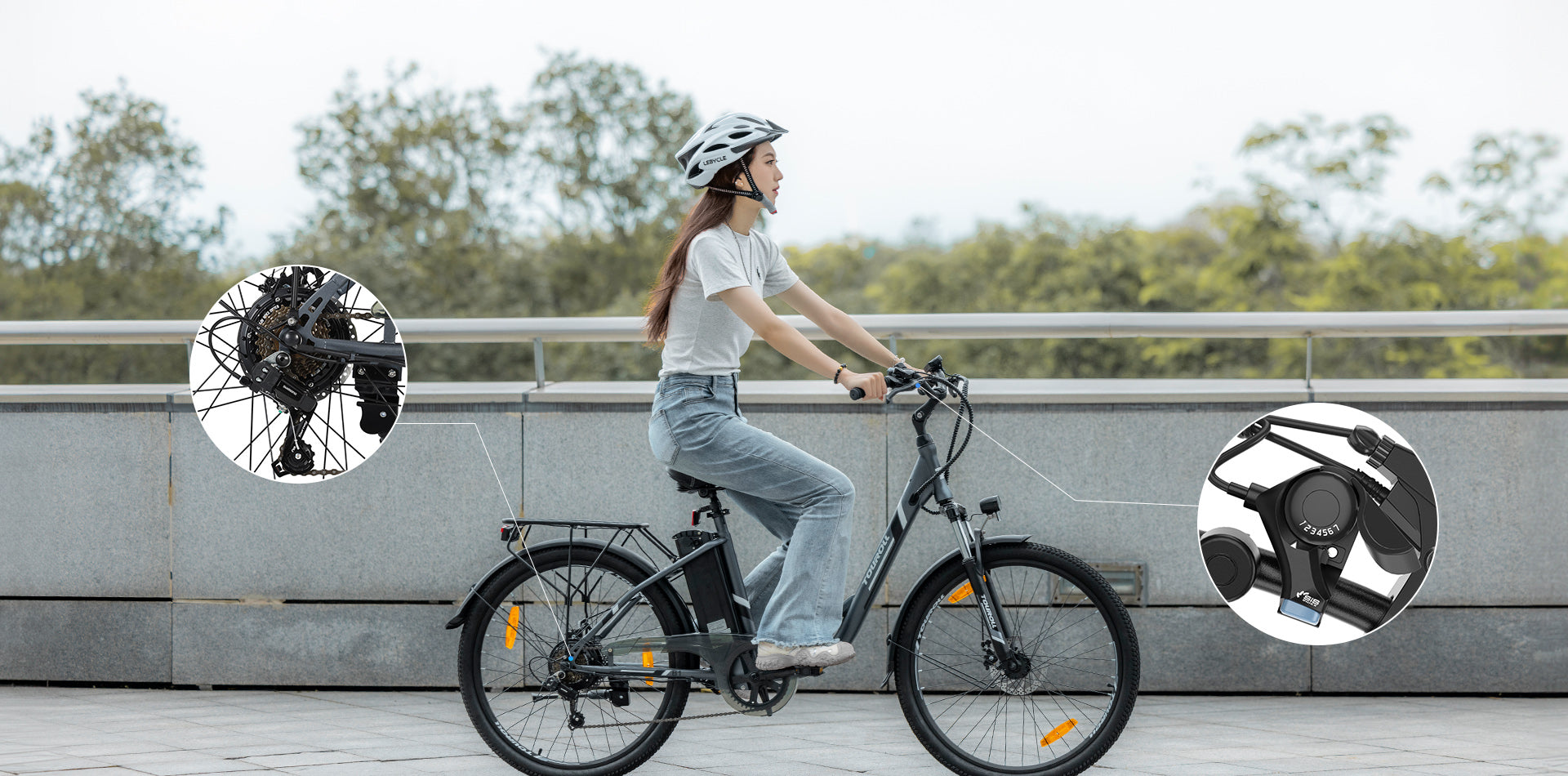

Derailleur

Merk: Shimano
Aantal schakelhendels: 7 (achter)

Accu

Spanning en capaciteit: 36V 15,6Ah
Oplaadtijd: 6-8 uur
Vermogenscapaciteit: 561,6 Wh
Beveiligingssysteem: Ja

Oplader

Ingang: 200-240V, 1,8A (max.)
Uitgang: 42V, 2A

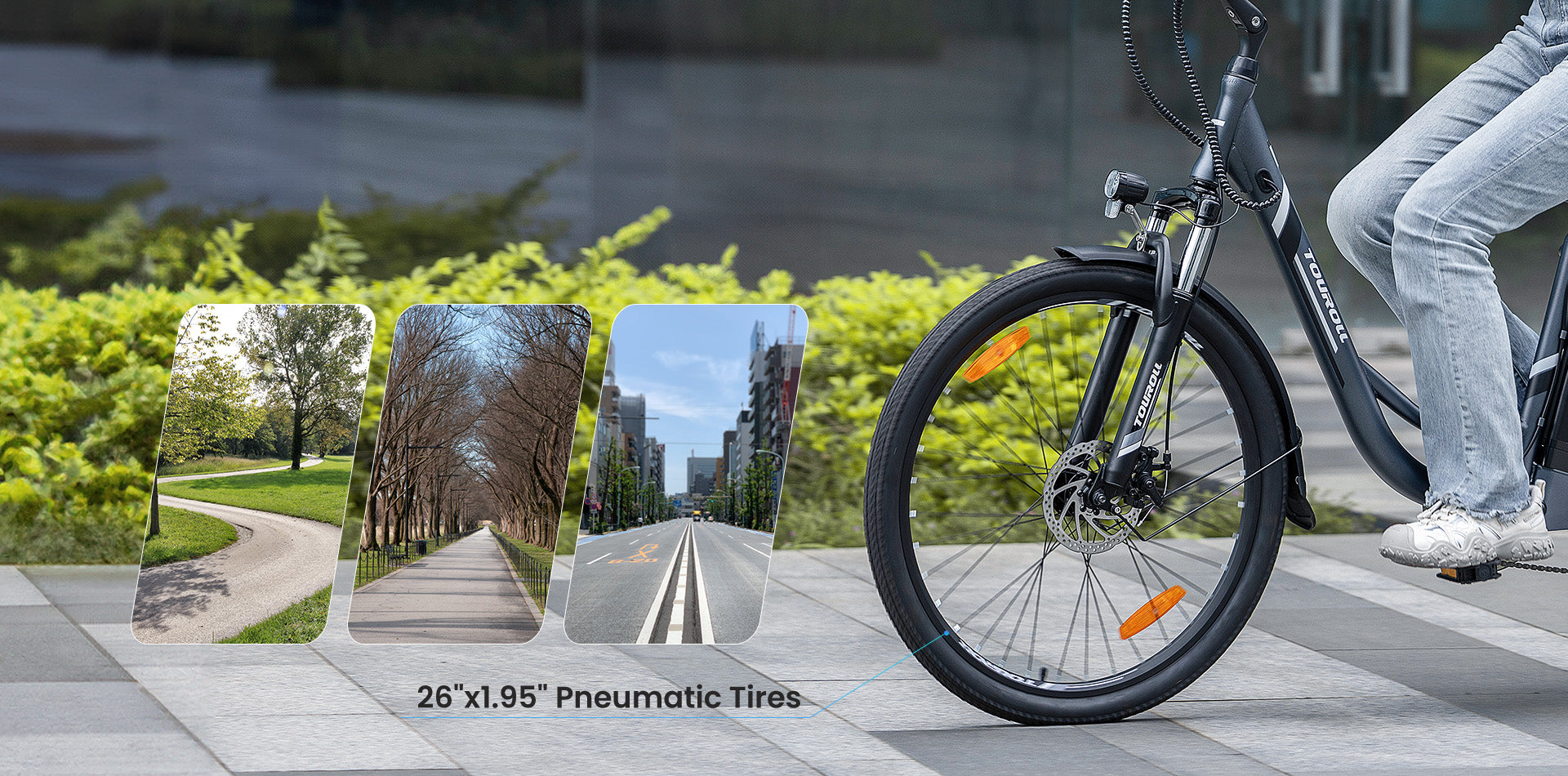

Banden

Afmetingen: 26" x 1,95"
Type: Pneumatische rubberbanden
Bandenspanning: 40-65 PSI
Optimale bandenspanning: 55-60 PSI

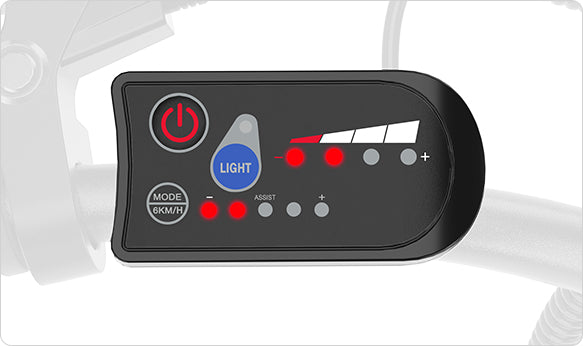

Instrument

Type: LED
Informatie: Assistentieniveau, Batterijniveau
Functies: Aan/uitzetten, Verlichting aan/uitzetten, Ondersteuningsniveaus wijzigen, Loopmodus van 6 km/u activeren

Pakket

Afmetingen: 1510x250x780 mm
Brutogewicht: 33 kg

Handleiding

  • Fiets

  • Handleiding

  • Oplader

  • Pedalen

  • Sleutels

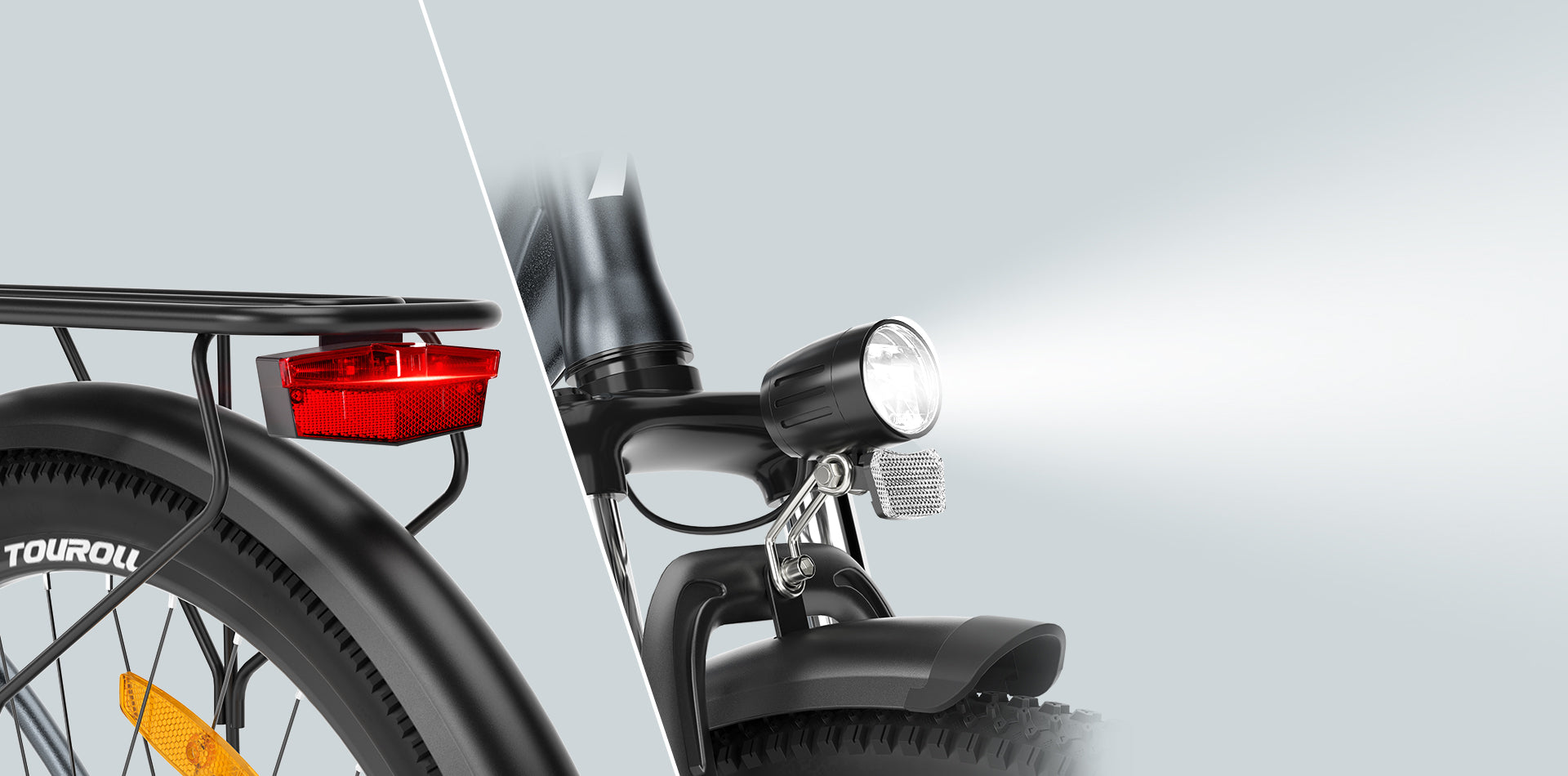

  • Koplamp

  • Gereedschapskist

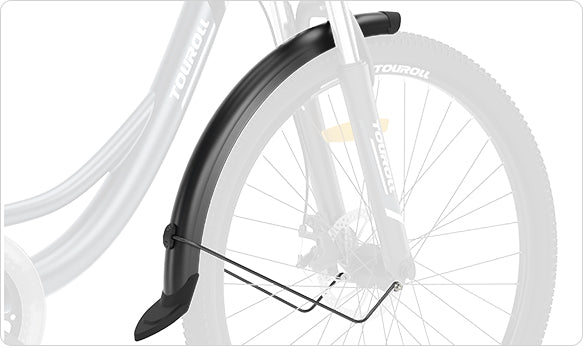

  • Spatborden

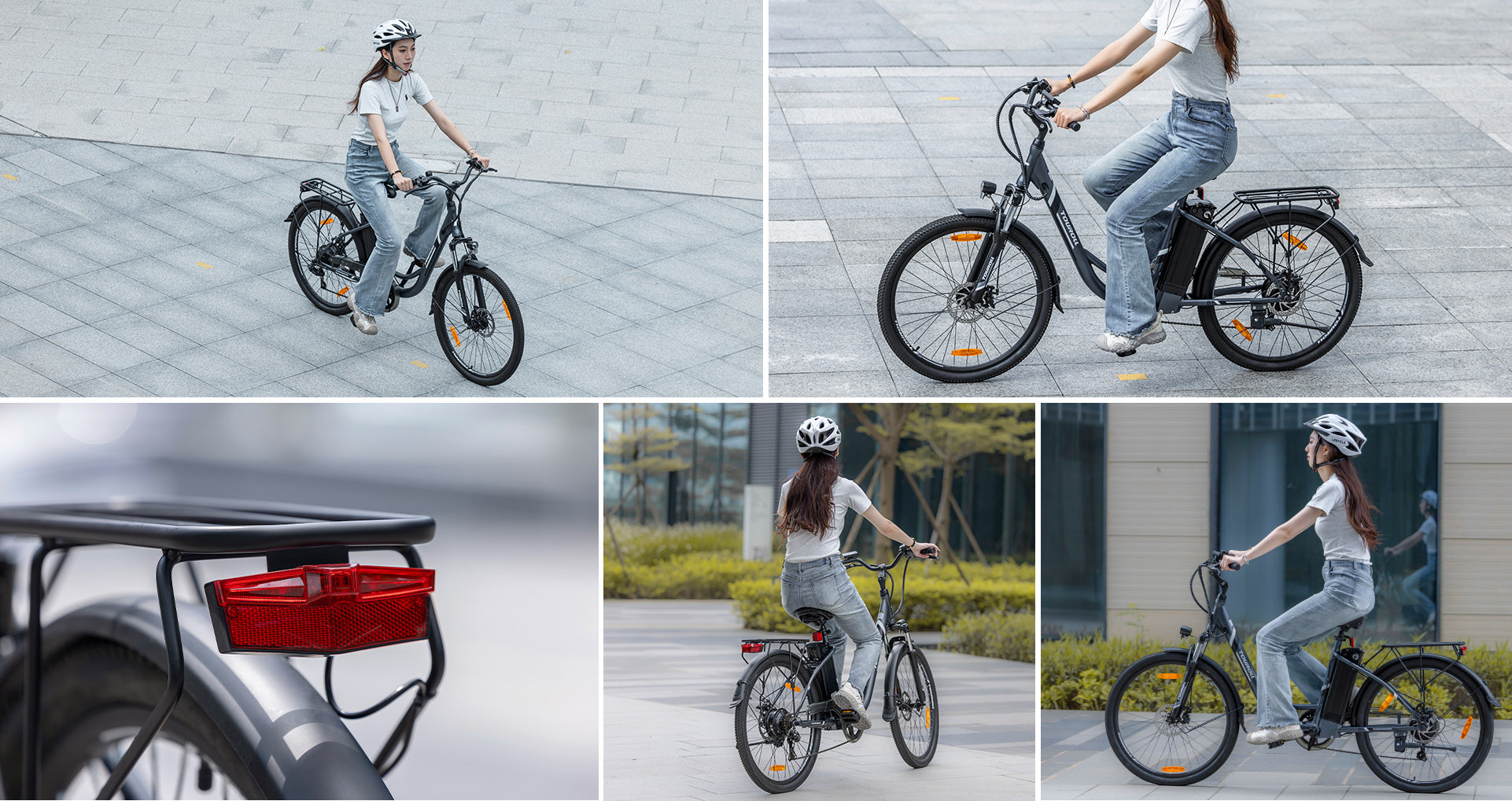

  • Achterdrager met achterlicht

Customer Reviews

Overall rating: 4.8 / 5 from 99 reviews.

Customer video review of Touroll B1 City Electric Bike

After riding my Touroll B1 for almost a month, I think I can finally give an honest review. Pros: Excellent value for money. I bought it during a promotion, which made the price even more attractive. Shortly after my purchase, the price increased, so I'm glad I bought it when I did. - The battery range has really impressed me. In pure electric mode (highest assist level), I can achieve over 50 km on a single charge. In pedal-assist mode (highest assist level), I can easily reach 90+ km, which is outstanding for a bike in this price range. - The bike feels stable and comfortable during normal riding, and overall the riding experience has been enjoyable. Cons: - The overall build quality is average rather than premium. - My front wheel has a slight alignment issue. When riding, you can see that it does not rotate in a perfectly straight line. Fortunately, I haven't noticed any negative impact on the actual riding experience. - The rear brake causes the bike to jerk slightly back and forth when braking. I hope this can be improved in future production batches. Suggestions for Improvement: 1. Battery removal could be more convenient. At the moment, the saddle has to be removed before the battery can be taken out. It would be much more user-friendly if the seat could simply flip up with a quick-release mechanism, allowing the battery to be removed directly. 2. Please add a riding mode memory function. Every time the bike is powered on, the assist level resets and has to be adjusted again. I usually ride in Level 4 or Level 5, so it would be great if the bike could remember the last selected assist level and restore it automatically after restarting. Overall, despite a few areas that could be improved, I think the Touroll B1 offers excellent value for money. The battery performance exceeded my expectations, and I would definitely recommend it to anyone looking for an affordable electric bike with long range

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City Electric Bike

After looking around for what is legal and affordable for UK, I’ve decided to purchase this Touroll B1 model and I couldn’t be more happier. It is my first electric assisted bike so I cannot compare it with others. It rides smoothly, looks well made, and it is also beautiful. The seller’s communication, delivery options, customer service are above Uk standards. Overall I am a happy client and would recommend this brand.

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City Electric Bike

Works really well. So far it has been an excellent experience. I usually use it in mode 2 as it is easy to brake and control it while turning in this mode. 3 and above, it accelerates fairly quickly gets a bit difficult to control especially on turns

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City Electric Bike

⭐️⭐️⭐️⭐️⭐️ La experiencia de compra ha sido muy buena. El envío fue rápido y sin complicaciones. La bicicleta eléctrica es práctica para el día a día, cómoda de usar y además tiene un diseño bonito que llama la atención. Muy contento con la compra, totalmente recomendable.

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City Electric Bike

I had no prior experience with bicycles before I started biking last year, but I was able to assemble this one myself without any issues. I've been using it to commute to work, and it's been a great experience so far. For the price, this electric bike is truly exceptional — it performs well, is reliable, and offers great value. I'm really happy with the quality and would definitely recommend it to others, especially beginners like me.

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City Electric Bike

The bike is all right. It works properly and everything. My only problem was that it was harder than expected to assemble, especially the 2nd one had some screws that were barely getting in and the saddle was still moving a bit no matter how hard I tried to fix it. In the end I had to take it to a workshop to get everything fixed. I don't know if I need better tools, skills or just more strength but hopefully everything will be all right from now on. I plan to make another purchase in a month or so but I haven't decided if I will get the same model or try a different one.

Touroll B1 City Electric Bike

Customer photo review of Touroll B1 City E-Bike

Sono contentissimo, ho trovato però, molto lenta la bici, quando premo il pulsante per andare piano senza pedalare, va a 4 km h, e faccio fatica a stare in equilibrio, per il resto è perfetta.

Touroll B1 City E-Bike

Customer photo review of Touroll B1 City E-Bike

i was really surprised at how good it is,happy camper here

Touroll B1 City E-Bike

Customer service was excellent. They responded quickly to my questions and resolved issues rapidly. They will be my go-to vendor as I grow my e-bike fleet.

Touroll B1 City Electric Bike

Super bike. The only problem is that the battery is in an uncomfortable spot, which requires to remove the saddle. But beside that, it's really, really nice. The only thing that might change my mind is longevity, but we will see.

Touroll B1 City Electric Bike

So far so good. Wish the seat was more comfortable and the battery was easier to slide out. But loving it whatsoever.

Touroll B1 City Electric Bike

The rear brake cable had a little damage. The sattle/seat hurts after riding half an hour, I had to get another one Besides that, I love the bike

Touroll B1 City Electric Bike

Génial, le vélo répondent tout point à mes attentes mis à part le positionnement de la batterie.

Touroll B1 City Electric Bike

Superbe vélo électrique, avec de bonne finition très agréable à rouler ! Bonjour rapport qualité/prix.

Touroll B1 City Electric Bike

Je suis très satisfaite de mon vélo à assistance électrique touroll b1. Je voulais un vélo avec un guidon suffisamment haut pour avoir le dos droit et ne plus avoir de douleurs aux épaules et cervicales . c'était le problème que j'avais sur mon VTC. Ce vélo me sert surtout pour mes déplacements quotidiens domicile/travail. J'ai 7 kms de voies cyclables avec quelques côtes,soit 14kms par jours. Je suis vraiment contente de ne plus arriver toute transpirante à mon lieu de travail et devoir toujours me changer. C'est un plaisir d'utiliser ce vélo à assistance électrique. Le côté négatif est que l'on doit retirer la selle du vélo pour retirer la batterie...en ce qui me concerne,je suis obligée de le retirer tous les jours car je suis en appartement et le local à vélo est partagé. Il est assez lourd aussi donc impossible pour moi de le mettre sur un porte vélo fixé sur le hayon d'un véhicule. Mais pour le prix, et tous les avantages que pourra vous apporter ce vélo ,je vous recommande ce vélo touroll b1 .

Touroll B1 City Electric Bike

The bike feels solid, especially considering the price. To early to say if it is going to last for a longer period of time, But it is a good bike! Easy to assemble, Rides good with strong motor and good upright position when riding and feels overall good.

Touroll B1 City Electric Bike

User Manual Deutsch teilweise schlecht übersetzt. Sollte ein deutscher Fahrradtester redigieren. Das Pedelec fährt sich gut.

Touroll B1 City Electric Bike

The touroll B1 is a fantastic first bike that perfectly blends sleek style with smooth effortless power. It’s incredibly fun to ride making every commute feel easy and comfortable. A solid reliable choice for anyone looking to enjoy the road

Touroll B1 City Electric Bike

Articolo conforme alla descrizione Molto solido e facile nel montaggio in quanto arriva pre assemblato

Touroll B1 City Electric Bike

I love this e-bike! I use it to go to work instead of my car, and within a week, I feel better (and more relaxed). I think that it will pay its cost in less than two months. The bike seems to be durable, made of good quality material.

Touroll B1 City Electric Bike

Very happy with the bike, first time I have ridden an electric bike and only wanted it for short journeys. Ordered the bike to be delivered in Spain, the delivery process was not straightforward and it took 3 weeks to get delivered with repeated phone calls to the delivery company.

Touroll B1 City Electric Bike

Video laden:

Touroll B1 Montagehandleiding

Onze e-bike wordt voor bijna 85% gemonteerd geleverd, dus er is enige montage vereist voordat u uw eerste rit kunt maken.

Ons handleidingen voor eigenaren, En montagevideo's Ik zal je door het montageproces leiden.

Veelgestelde vragen

Lees alstublieft onze Veelgestelde vragen Ga naar de pagina voor meer informatie.

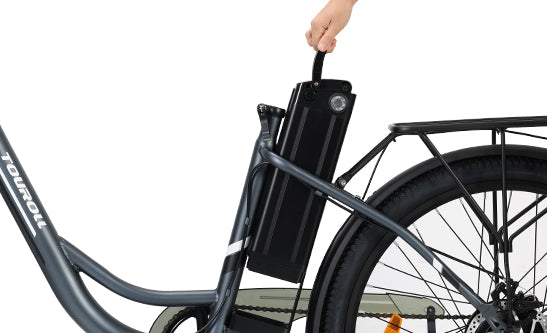

Kan de batterij verwijderd worden?

Ja, de accu is verwijderbaar en kan gemakkelijk worden opgeladen op of naast de fiets. Hij kan ook veilig worden afgesloten met de meegeleverde sleutel.

Kan ik extra accu's voor de e-bike kopen?

Ja, extra batterijen kunnen worden aangeschaft via onze officiële website (www.touroll.com) of een erkende dealer.

Wordt de e-bike geleverd met een oplader?

Ja, bij de B1 e-bike wordt een oplader meegeleverd.

Hoe laad ik de batterij op?

Het batterijpakket kan op of naast de fiets worden opgeladen door de lader eenvoudig in het stopcontact te steken en deze aan te sluiten op een standaard stopcontact. Het opladen duurt doorgaans 6-8 uur.

Welke onderdelen van de fiets moet ik zelf in elkaar zetten?

Uw e-bike wordt gedeeltelijk gemonteerd geleverd, ongeveer 85%, en verpakt in een standaard fietsdoos. De montage omvat het bevestigen van het voorwiel, de pedalen, het zadel, het stuur, de koplamp, het voorspatbord, de achterreflector en de spaakreflectoren, het vastzetten van de bagagedrager en het achterspatbord.

Montage is zeer eenvoudig en u kunt onze stapsgewijze videogids op YouTube en de gebruikershandleiding raadplegen.

Wat is het hoogste gewicht waarbij je veilig op deze e-bike kunt rijden?

Voor optimale prestaties en systeembetrouwbaarheid is het aanbevolen maximale rijdergewicht 120 kg.

Hoe lang moet ik zijn om comfortabel op deze e-bike te kunnen fietsen?

Het aanbevolen hoogtebereik voor fietsers is 155-195cm (ongeveer 5 '1 "-6' 5").

Is het oké om met de e-bike in de regen te fietsen?

Alle elektronische componenten, inclusief de accu, zijn waterbestendig. We raden echter sterk aan om uw e-bike tijdens regen of extreme weersomstandigheden binnen te houden om mogelijke schade te voorkomen.

Waar wordt de fiets verzonden en hoe lang duurt het voordat ik hem ontvang nadat ik hem heb besteld?

Onze fietsen worden verzonden vanuit onze magazijnen in Europa. Voor verzenddetails en levertijden verwijzen wij u naar de verzendopties op onze officiële website. www.touroll.com.

Wat moet ik doen als er een probleem is met mijn fiets?

Voor hulp met eventuele problemen of vragen, kunt u contact opnemen met onze klantenservice.

We hebben professionele aftersales-teams en technici beschikbaar om u te helpen bij het oplossen van eventuele problemen. Raadpleeg voor meer informatie het garantiebeleid op de officiële website. www.touroll.com.

Heb je je antwoord niet gevonden?

Aarzel niet om contact met ons op te nemen

*Lees de geldende wetten, voorschriften en verkeersregels met betrekking tot het gebruik van dit product in uw land of regio en houd u eraan.
