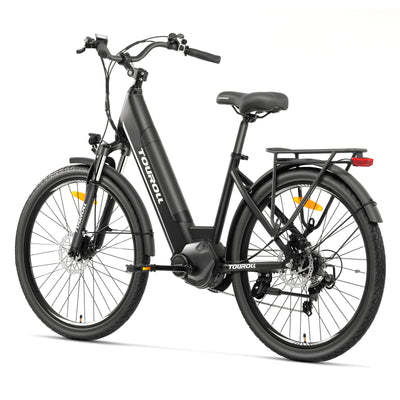

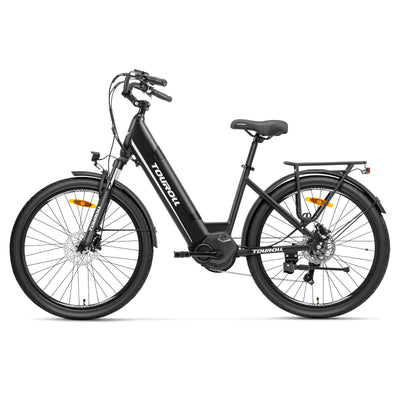

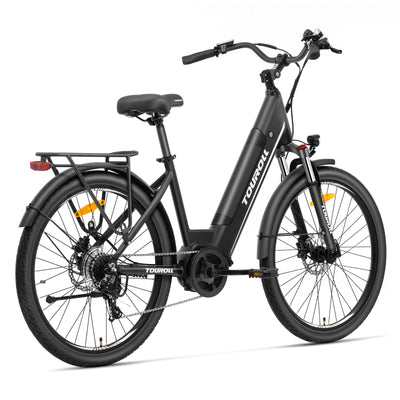

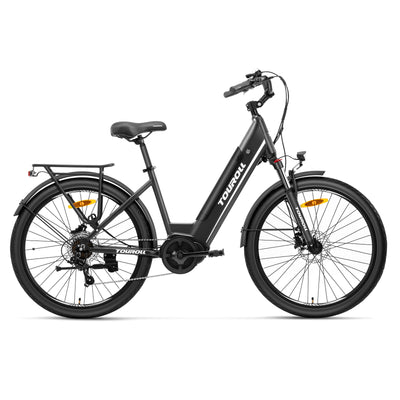

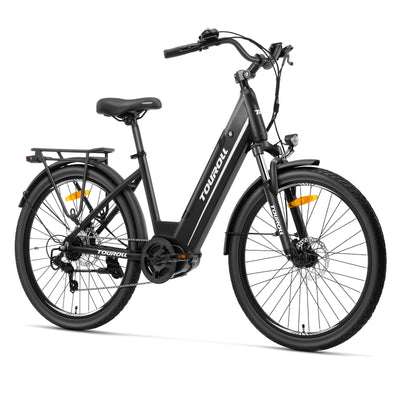

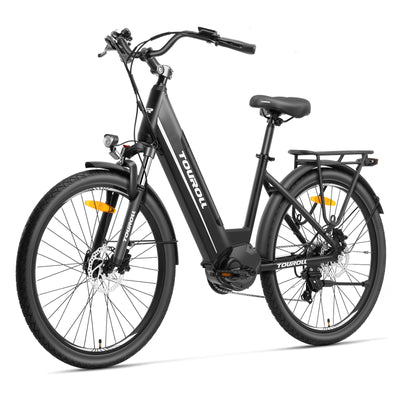

Touroll MA1 Mid-Drive Electric Bike
Pay with ease
Pairs well with
Touroll MA1 Mid-Drive Electric Bike
Efficient Power Drives. Effortless Rides.
Power you up instantly and efficientlywith a mid-drive motor. Embrace a morenatural and effortless riding experience!
Improved Torque. Elegant Climber.
Steep hills and challenging terrain are just a breeze to tackle. Ride with ease and grace!
75 N.M
Torque
Embedded Removable Battery
Easy charging on/off the bike
Better protection from splashes and dust
More aesthetically pleasing
36V 13Ah
Flexible Adjustment Fits Your Height
Ride in optimal comfort by adjusting the seat height and stem angle to your preferred posture.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Our bikes are shipped from warehouses in Europe. It usually takes around 3-7 working days for shipment.
Customer Support
Please send email to support@touroll.com if you have any questions.
Warranty
We provide 1-Year warranty service.
14 Days Return
Worry-Free Promise.
More Exquisite Details
Durable Pneumatic Tires
Soft Padded Saddle
Smart LCD Control
Sturdy Luggage Rack
| A | Total Length | 69.5" |
| B | Handlebar Height | 43.9-45.1" |
| C | Wheelbase | 42.8" |
| D | Min. Seat Height | 32.3" |
| E | Max. Seat Height | 40.7" |
| F | Standover Height | 11.6" |
| G | Effective Top Tube | 21.7" |
| H | Wheel Size | 26" |
| I | Down Tube | 26.6" |
| J | Seat Tube | 17" |
| K | Angle b/w DT & ST | 47° |
| L | Handlebar Length | 27.6° |
| M | Reach | 14.8" |
| N | Stack | 26.8" |
| O | Head Tube Angle | 69° |
Specification
Basic Specification
Net Weight: 27kg
Unfolded Size: 1780x700x1150mm
Size of Frame: 26"x17"
Length of Handlebar: 700mm (27.6")
Seat Height (From the Ground): 32.3"-40.7"
Recommended Rider Height: 155-190cm (5' 1"-6' 3")
Max Load of Bike: 120kg
Cut-off Speed: 25km/h
Max Range (Assist Mode): 110km (68.3 miles)
Pedal Assist Levels: 12/15/18/21/25 km/h (Level 1-5)
Walk Mode: 6km/h
Waterproof Level: IPX4
Material of Frame: Aluminium Alloy
Braking System: Hydraulic Disc Brakes & Power-off Design
Suspension: Suspension Fork with Lockout
Suspension Travel: 100mm
Motor
Type: Mid-Drive Motor
Rated Voltage: 36V
Rated Power: 250W
Max Output Torque: 75N.M
Derailleur
Brand: Shimano
Number of Gears: 7 (Rear)
Battery
Capacity: 13Ah
Voltage: 36V
Charging Time: 6.5h
Power Capacity: 468Wh
Protection System: Yes
Charger
Input: 100-240V, ≤1.8A
Output: 42V, 2A
Tires
Size: 26"x2.1"
Type: Pneumatic Rubber Tires
Tire Pressure: 30-45PSI
Best Tire Pressure: 35-40PSI
Display
Size: 2.6"
Type: LCD
Information: Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark
Functions: Power on/off, turning light on/off, shifting assist levels, activating walk mode, removing trip data, setting screen timeout, etc.
Package
Size: 1500x250x850mm
Gross Weight: 34kg
User Manual
Bike
User Manual
Charger
Pedals
Keys
Saddle
LCD Display
Tool Kit
Mudguards
Spoke Reflectors
FAQs
Please read our FAQs page to find out more.
What’s the difference between mid-drive motors and hub motors?
Mid-drive motors are located in the center of the bike frame and provide better balance and weight distribution. They also allow for better control over the gears and cadence. Hub motors are located in the wheel hub. They provide a more direct drive system but can affect the overall balance and handling of the bike.
What are the advantages of a mid-drive bike?
Mid-drive motors offer improved balance and handling as they are located in the center of the bike near the pedals. By using the bike's gears to power the motor, mid-drive motors enable more efficient use of power and longer range. They also provide increased torque for climbing hills and conquering diverse terrains.
Is the battery removable?
Yes. The battery is removable and can be charged on or off the bike. You can lock it on your bike with the key for high security.
Does the e-bike come with a display?
The MA1 bike comes with an LCD that shows various information, including real-time speed, battery level, assist level, riding distance, trip time, etc.
How do I recharge the battery pack?
The battery pack can be charged on or off the bike by plugging in the charger unit. The charger unit connects to a standard wall outlet. The charging time is around 6.5 hours.
What braking system does it use?
The MA1 uses premium hydraulic disc brakes that offer better control, increased braking effort and more responsive braking, enabling a 30% shorter braking distance than traditional mechanical brakes. The sealed hydraulic system is less prone to contamination, wear or tear, which lasts longer and requires less maintenance.
What kind of assembly is required?
Your e-bike will arrive partially assembled (about 85%) and packaged in a standard bike box. The parts that need to be mounted include the front wheel, front mudguard, headlight, saddle, pedals and handlebars. You can check the manual for a step-by-step guide.
What is the maximum rider weight?
The maximum recommended rider weight is around 120kg (264.5 lbs) for optimal performance.
What is the size of the frame?
The size of the frame is 26"x17".
I’m 5'9". Can I use this bike?
Yes. The recommended rider height is 155-190cm (5' 1"-6' 3").
Can I ride this bike on a rainy day?
All of the electric components, including the battery pack, are designed to be water-resistant. However, we strongly recommend keeping it indoors on rainy days or in bad weather.
Where is the bike shipped from? And how many days can I get the bike after I place the order?
Our bikes are shipped from warehouses in Europe. It usually takes around 3-7 working days for shipment.
What if there are any quality issues with the bike?
Touroll has a professional after-sales service team and a technical support team. You could get local maintenance services in Europe. For more information regarding the warranty, please click here.
