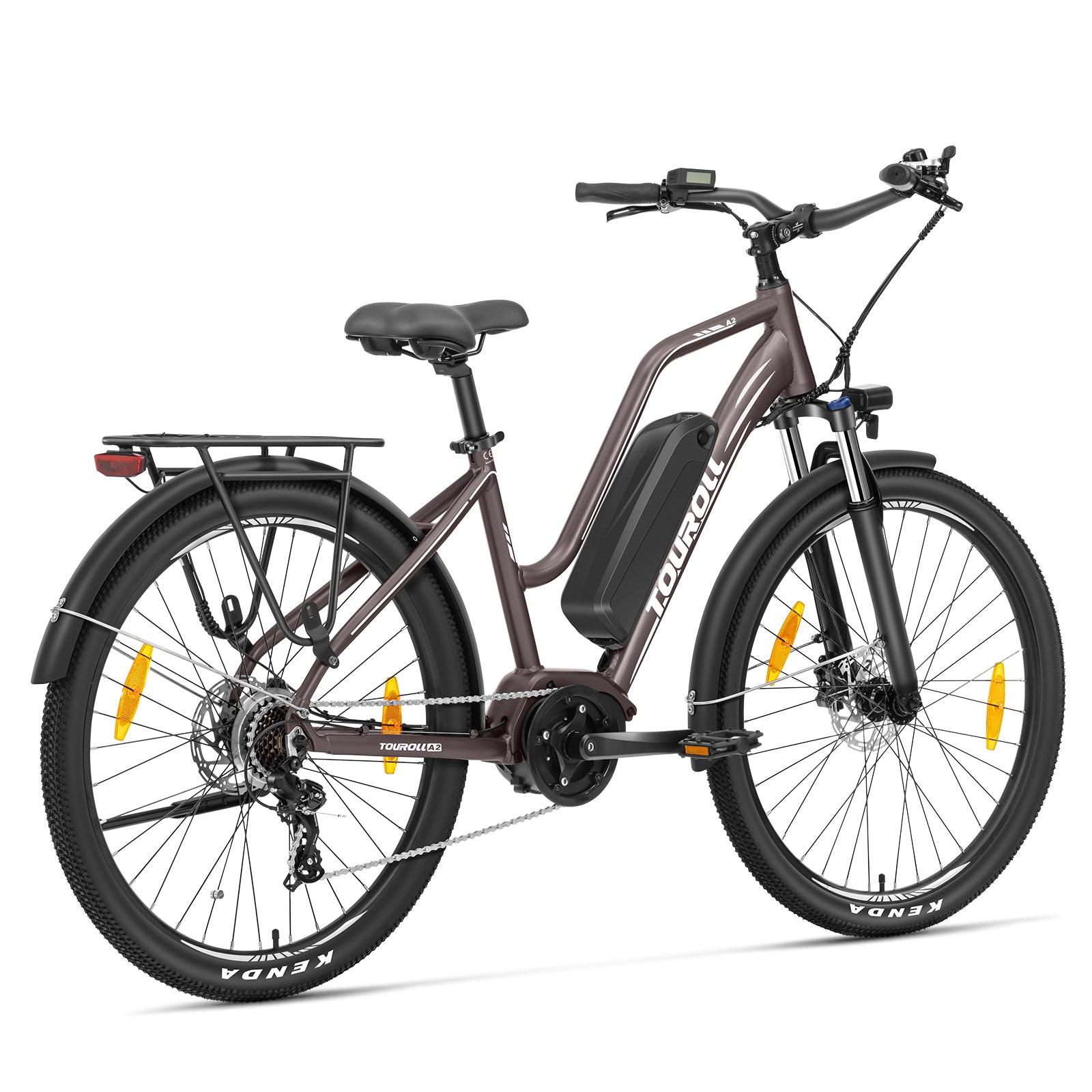

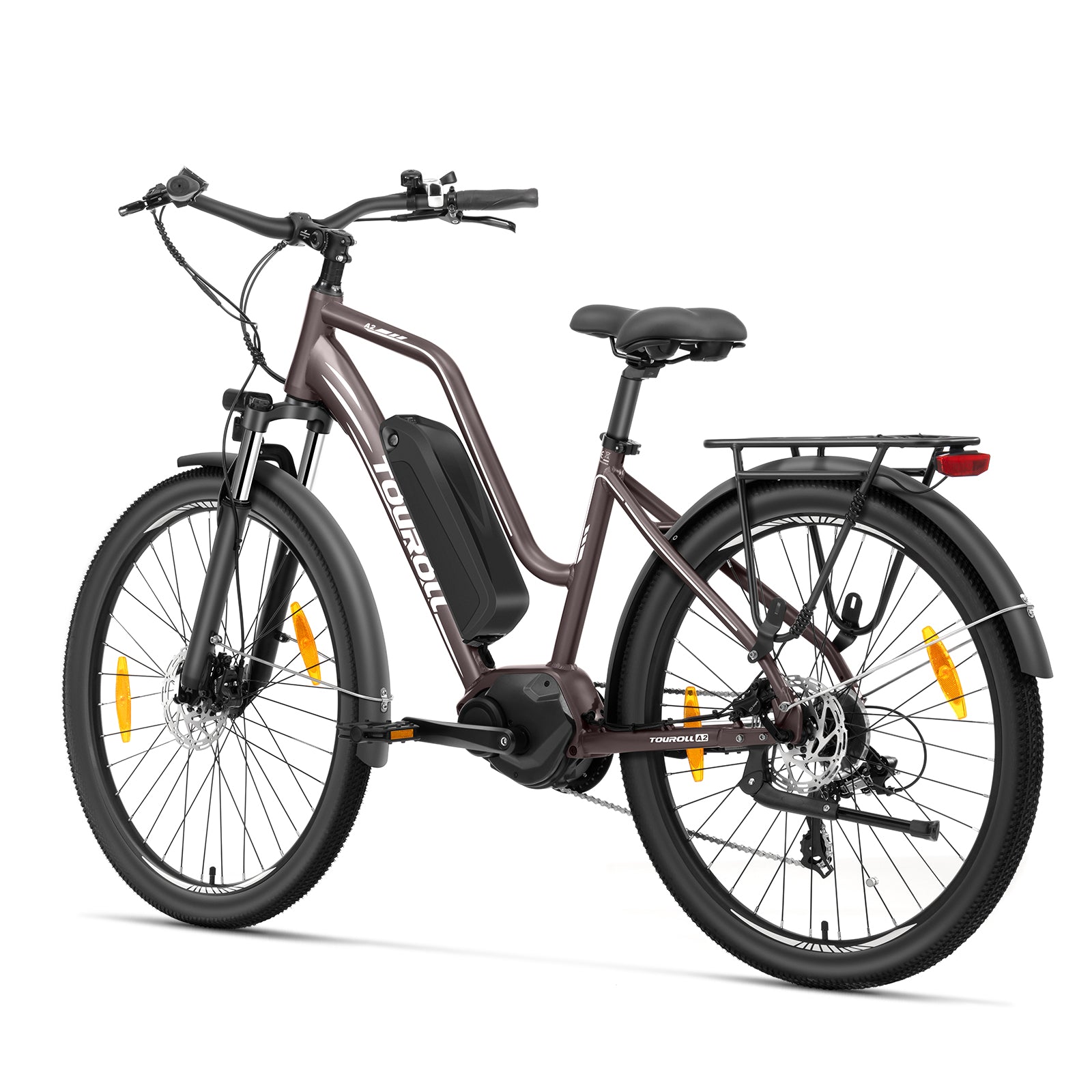

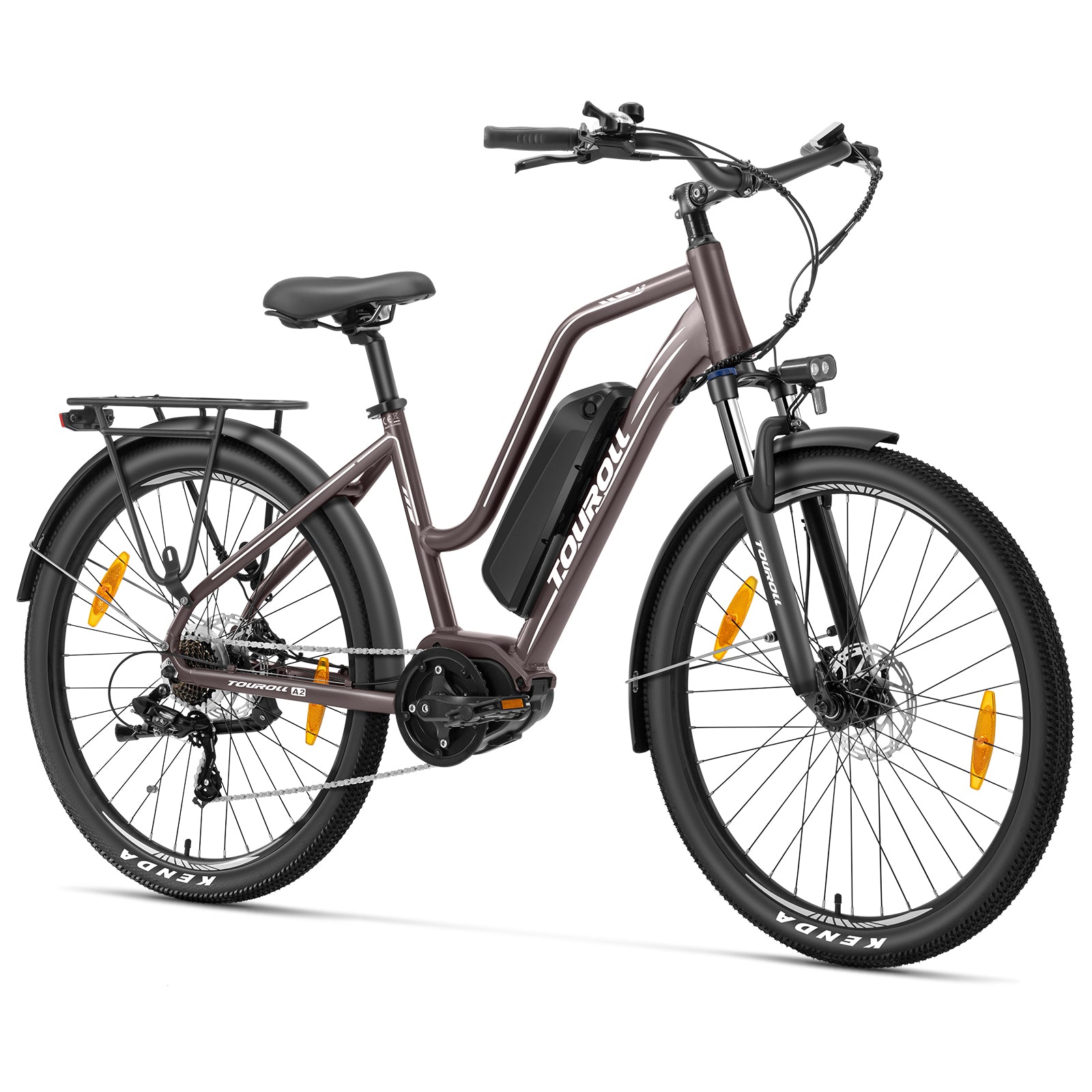

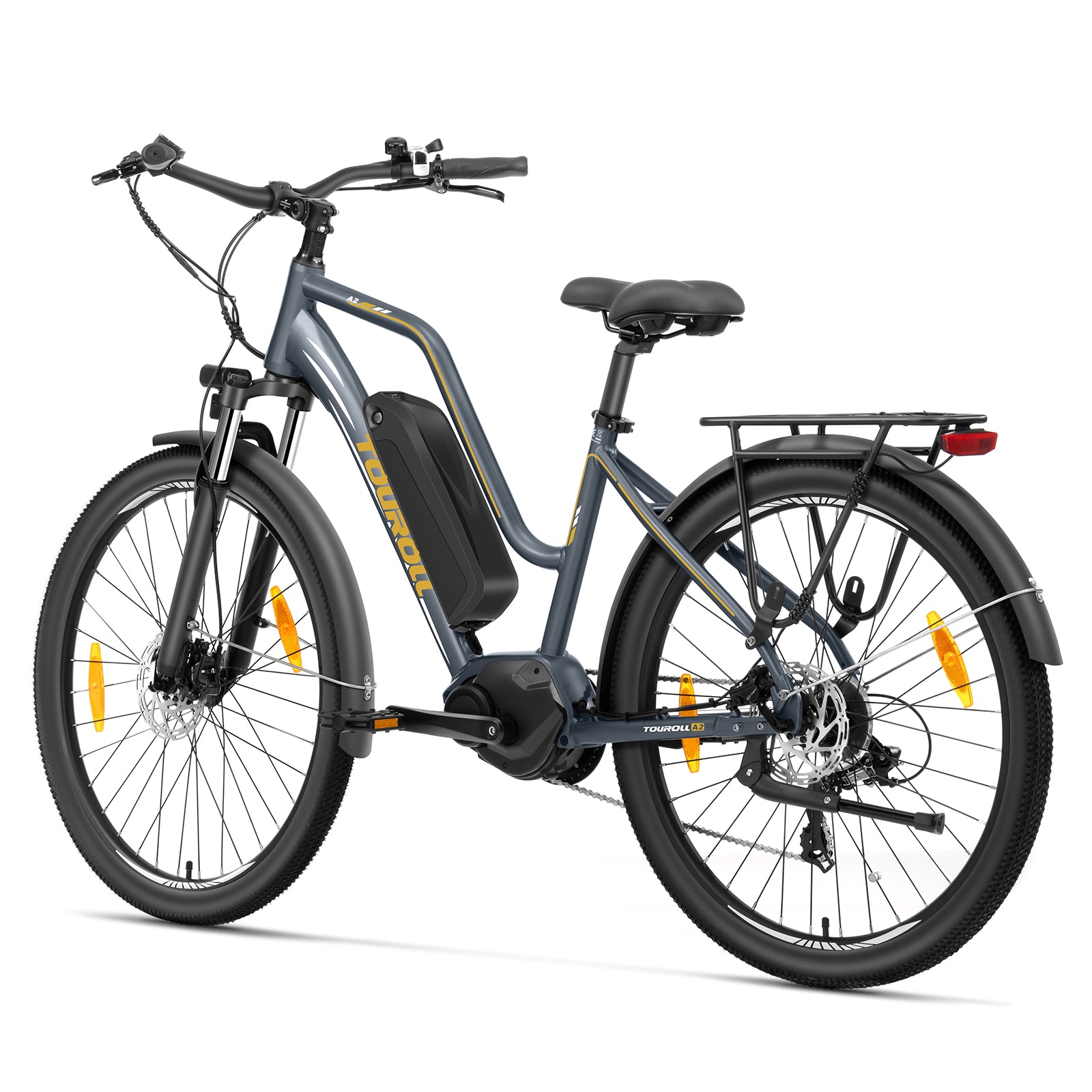

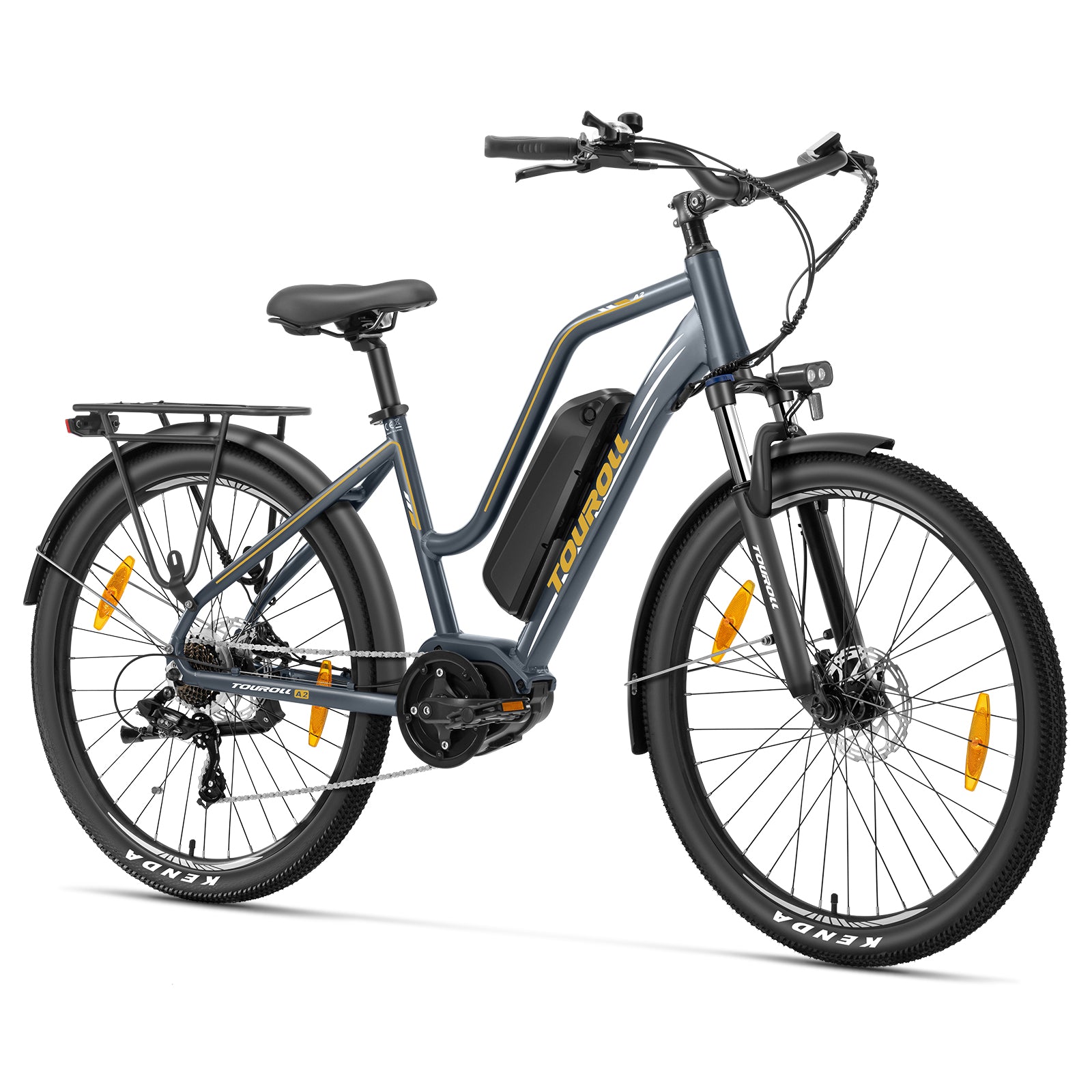

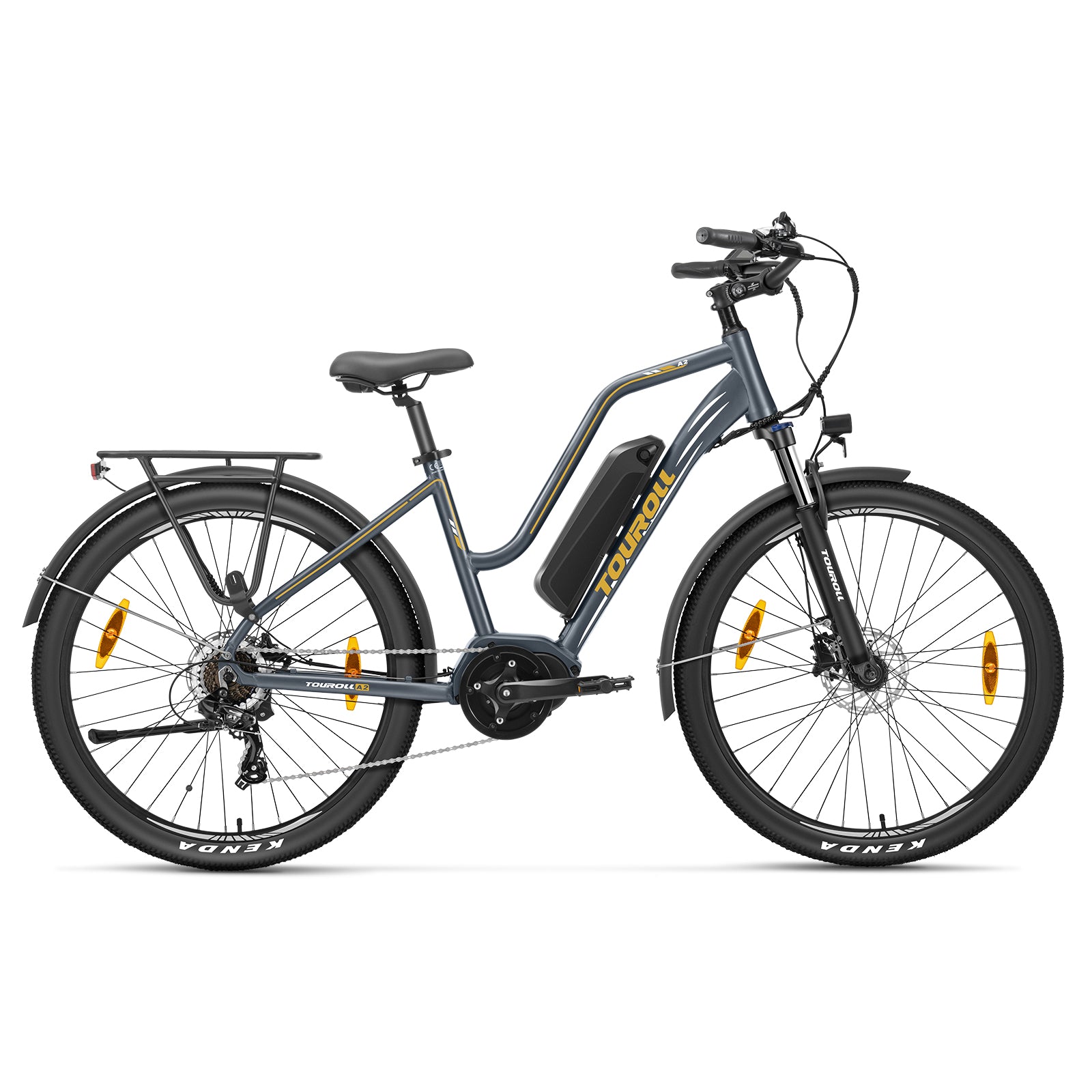

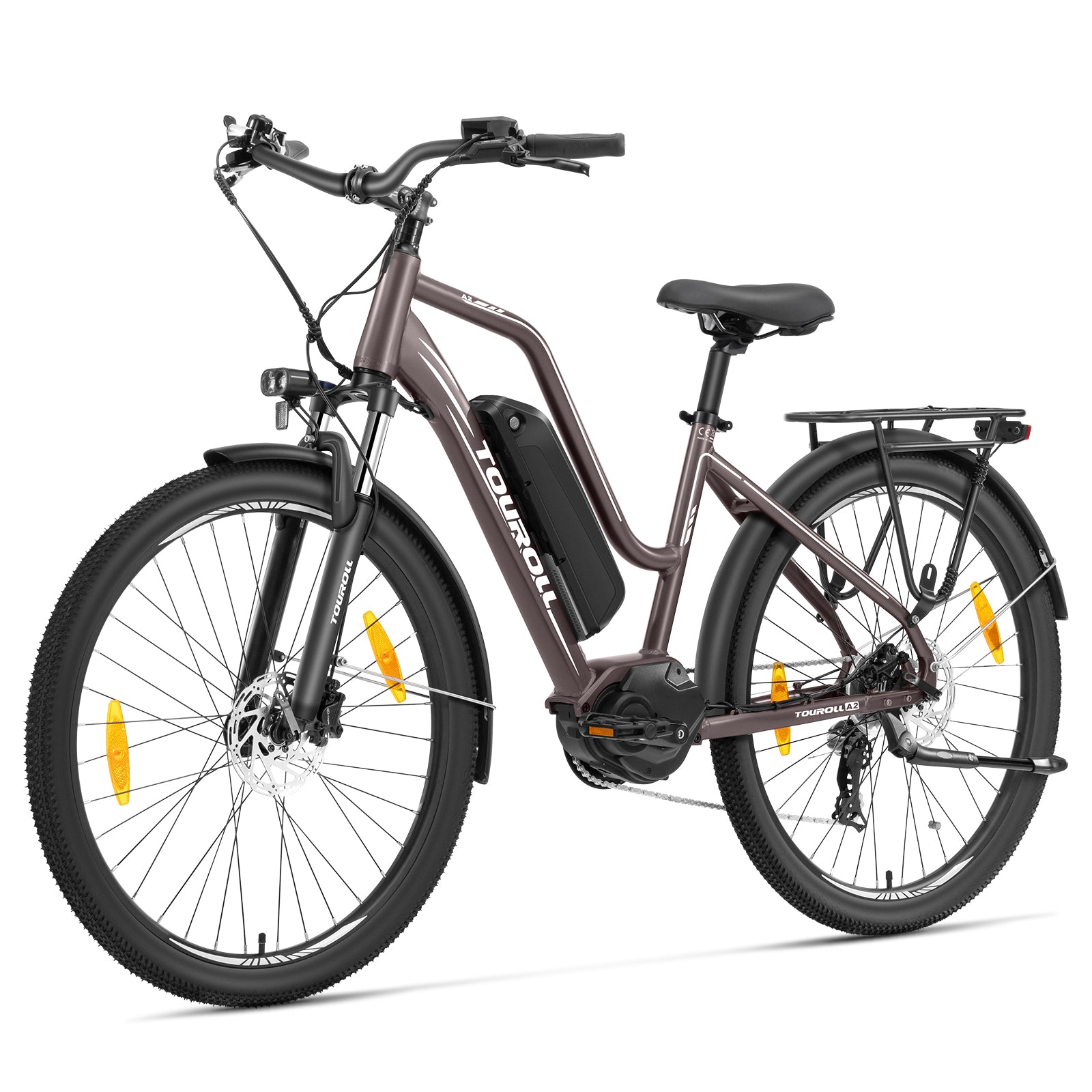

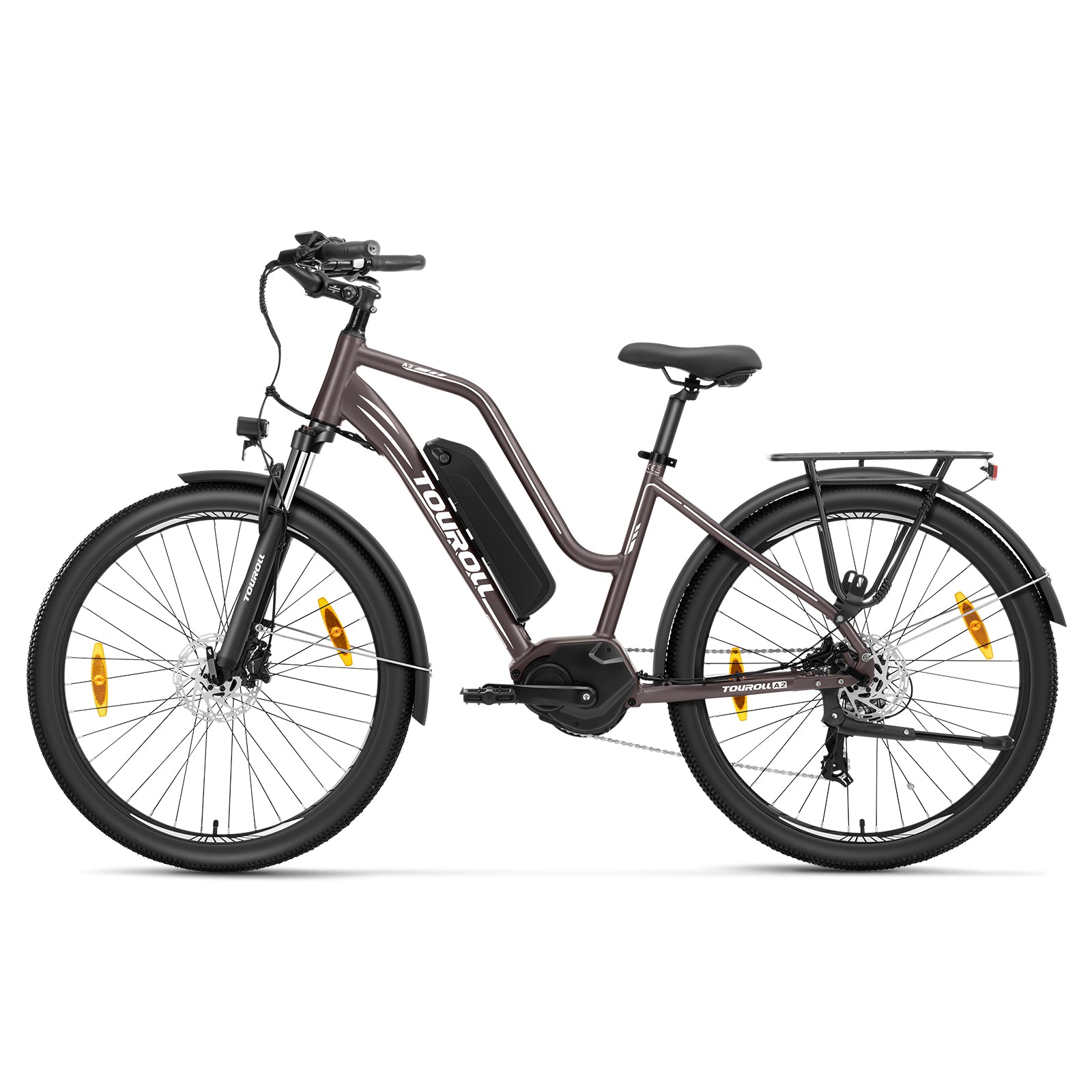

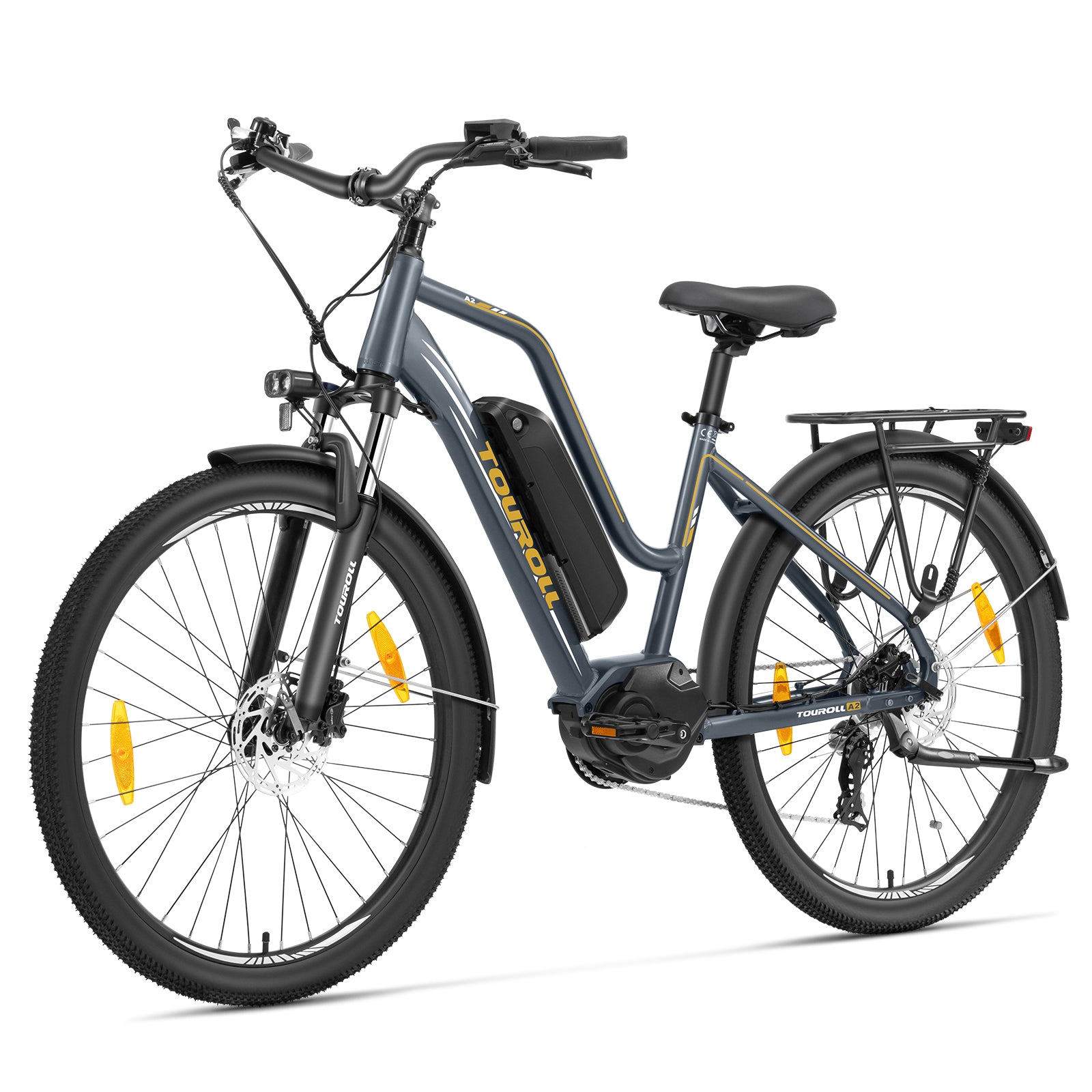

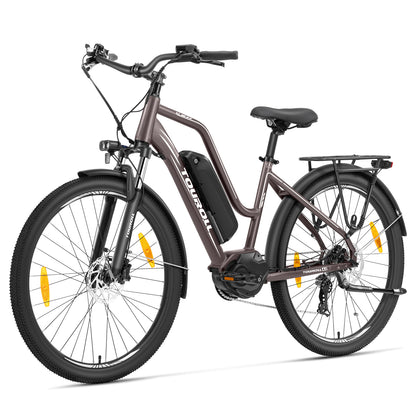

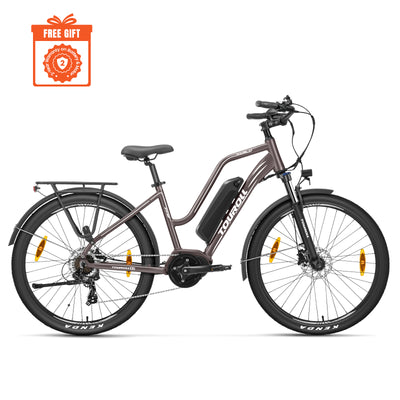

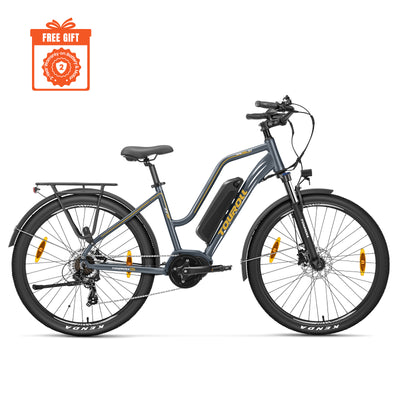

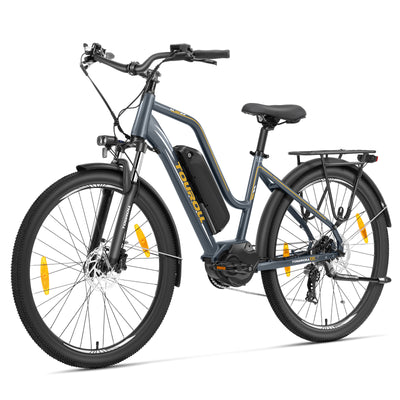

Touroll MA2 Mid-Drive Electric City Bike

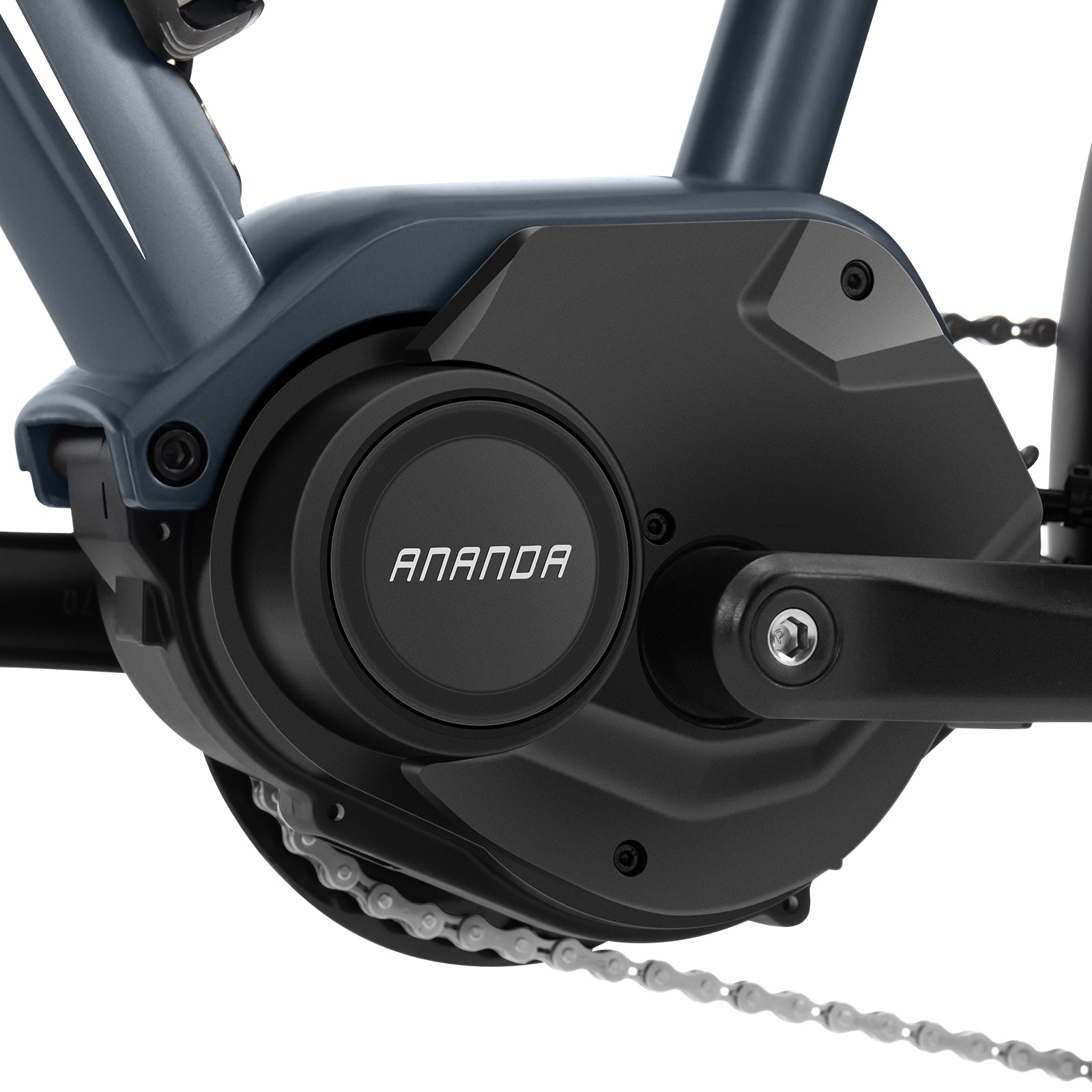

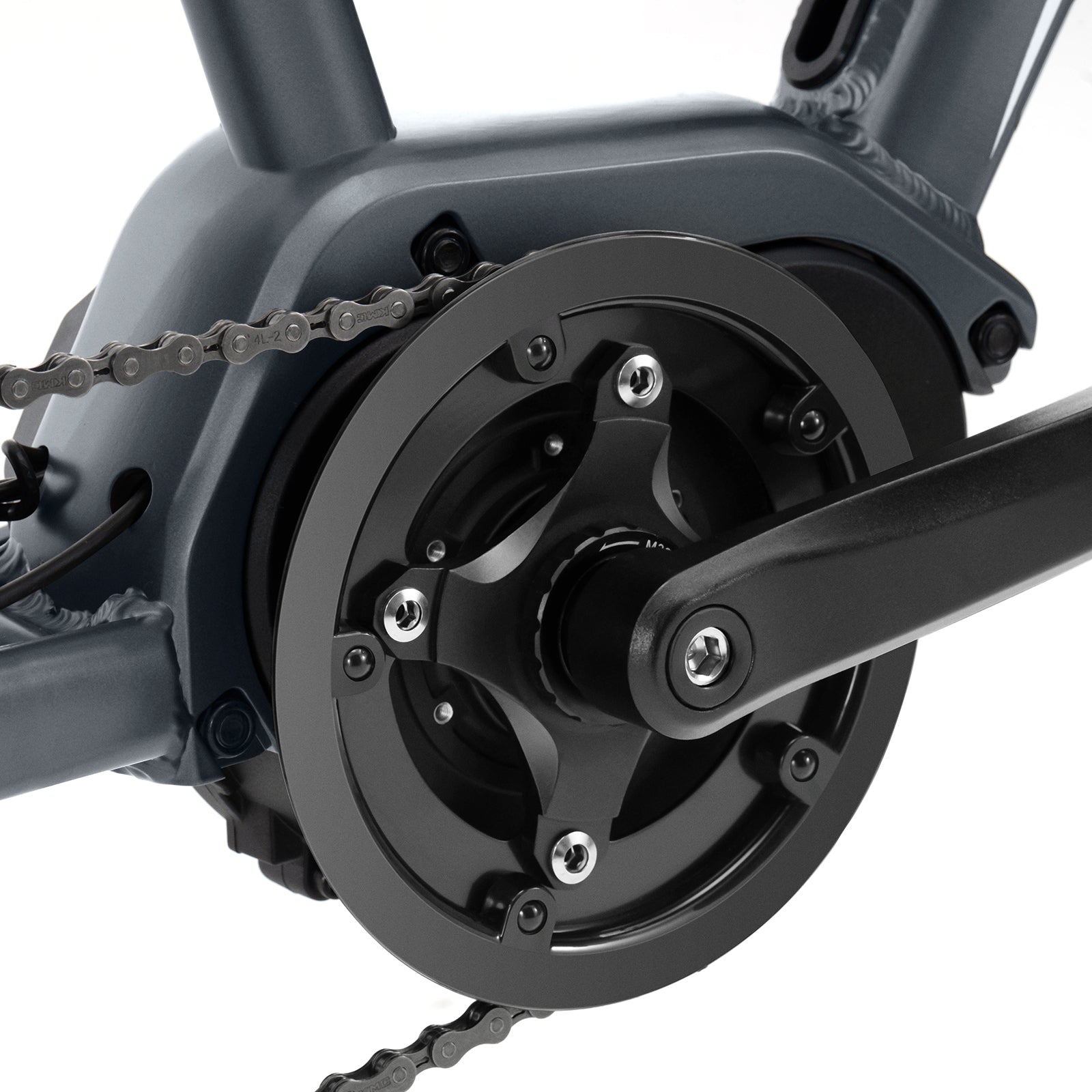

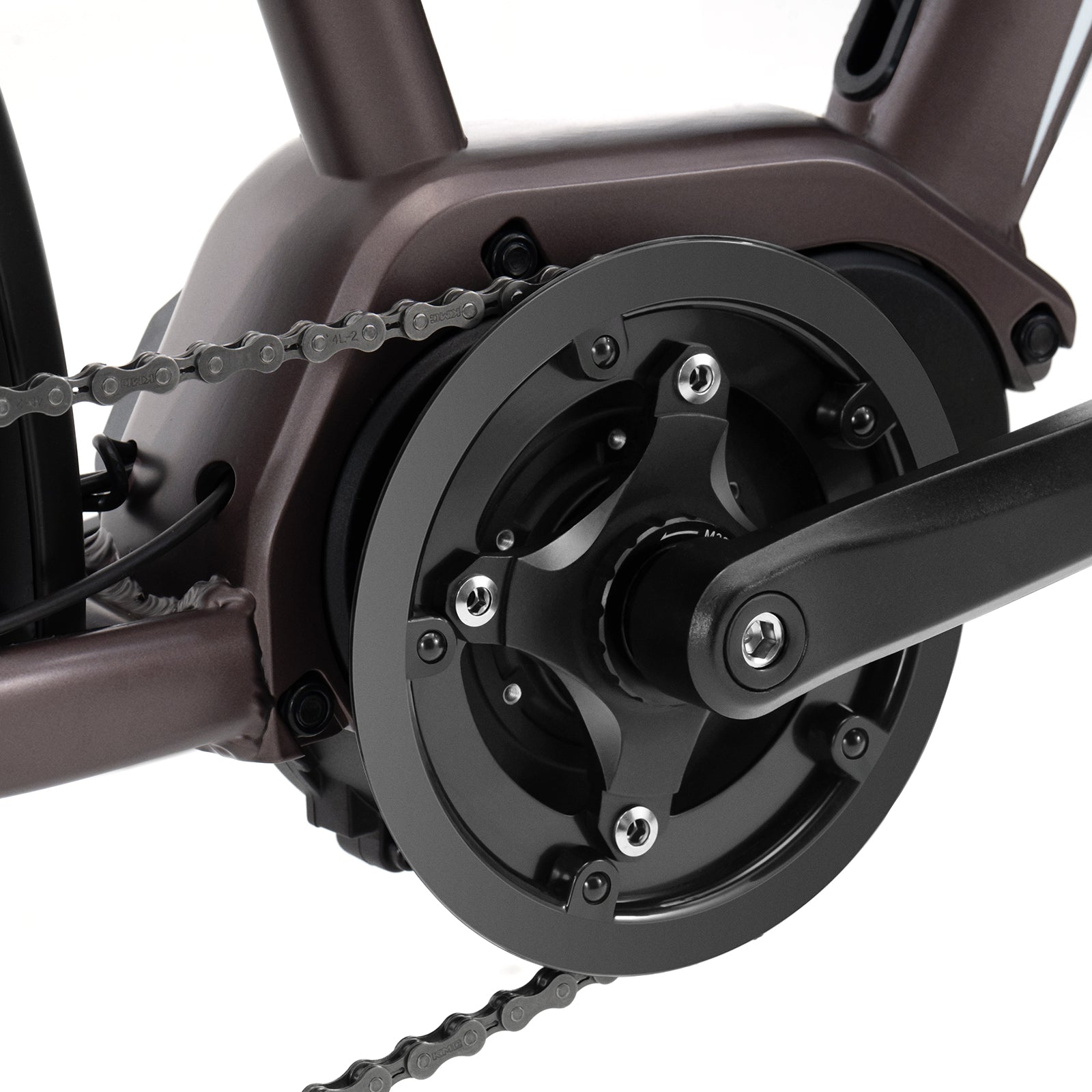

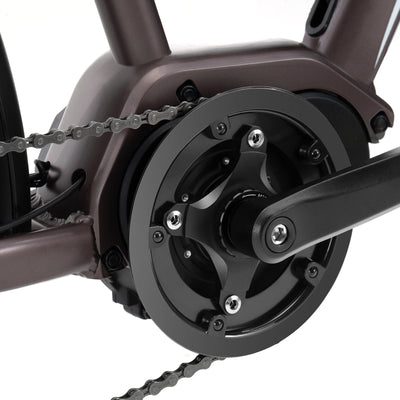

Compact & Stable Mid-Drive Design
The motor and crankset are seamlessly integrated to keep the center of gravity low, enhancing overall balance, control, and riding stability.

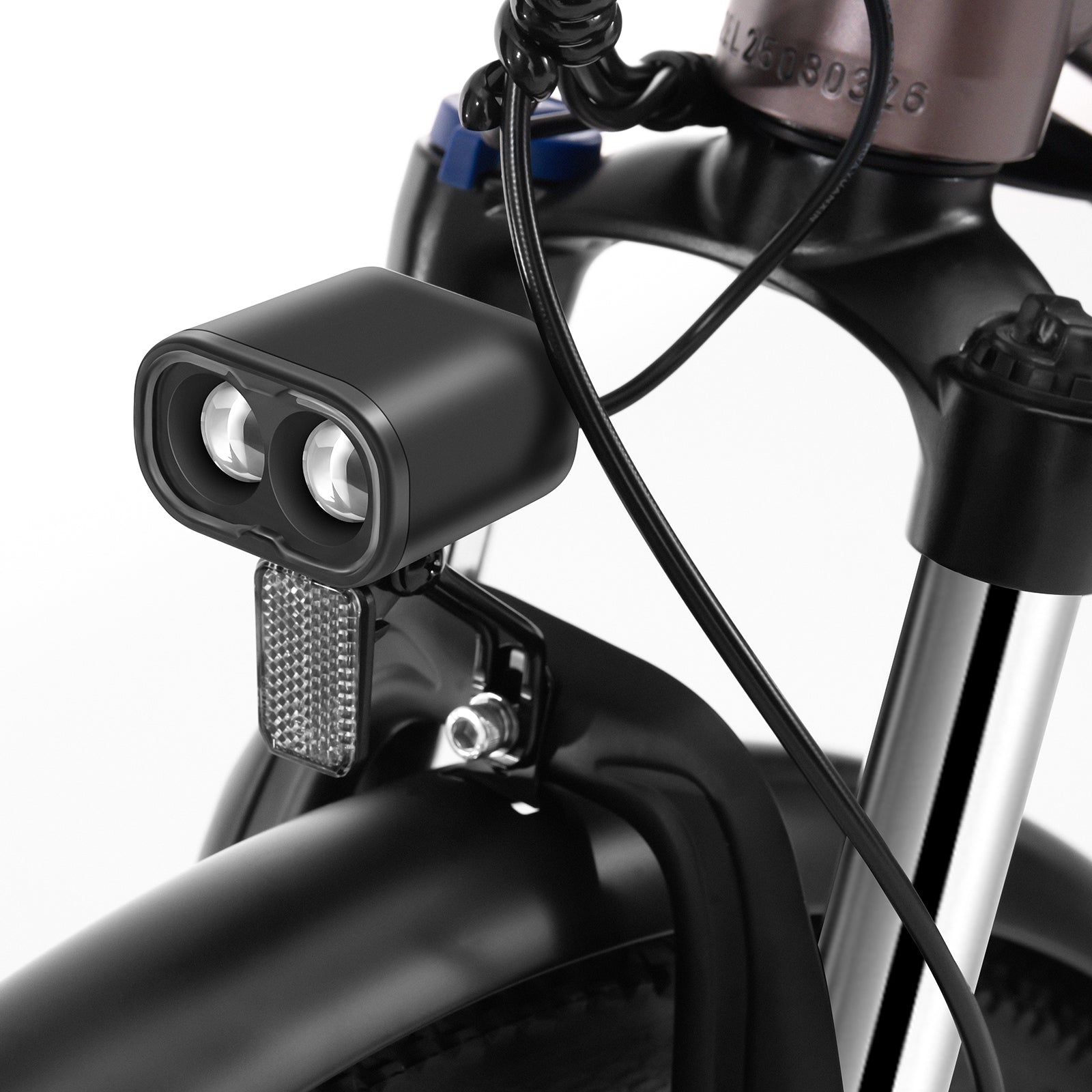

Certified Lights for Safer Night Riding
StVZO-certified front and rear lights keep you visible and safe, ensuring confidence in low-light conditions.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Our bikes are shipped from warehouses in Europe. It usually takes around 3-7 working days for shipment.
Customer Support
Please send email to support@touroll.com if you have any questions.
Warranty
We provide 1-Year warranty service.
14 Days Return
Worry-Free Promise.

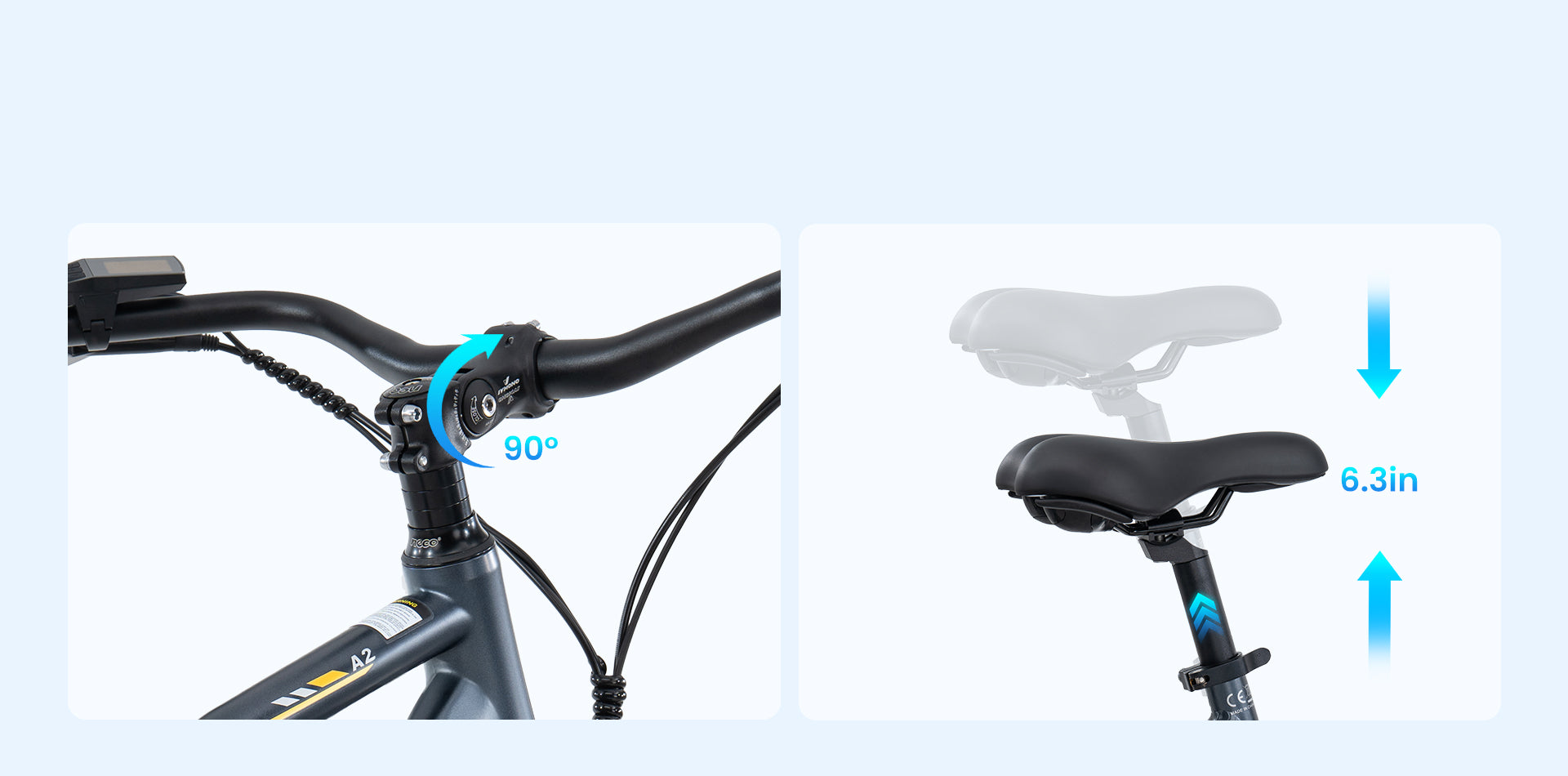

User-Friendly Details
| A | Total Length | 73.6" |

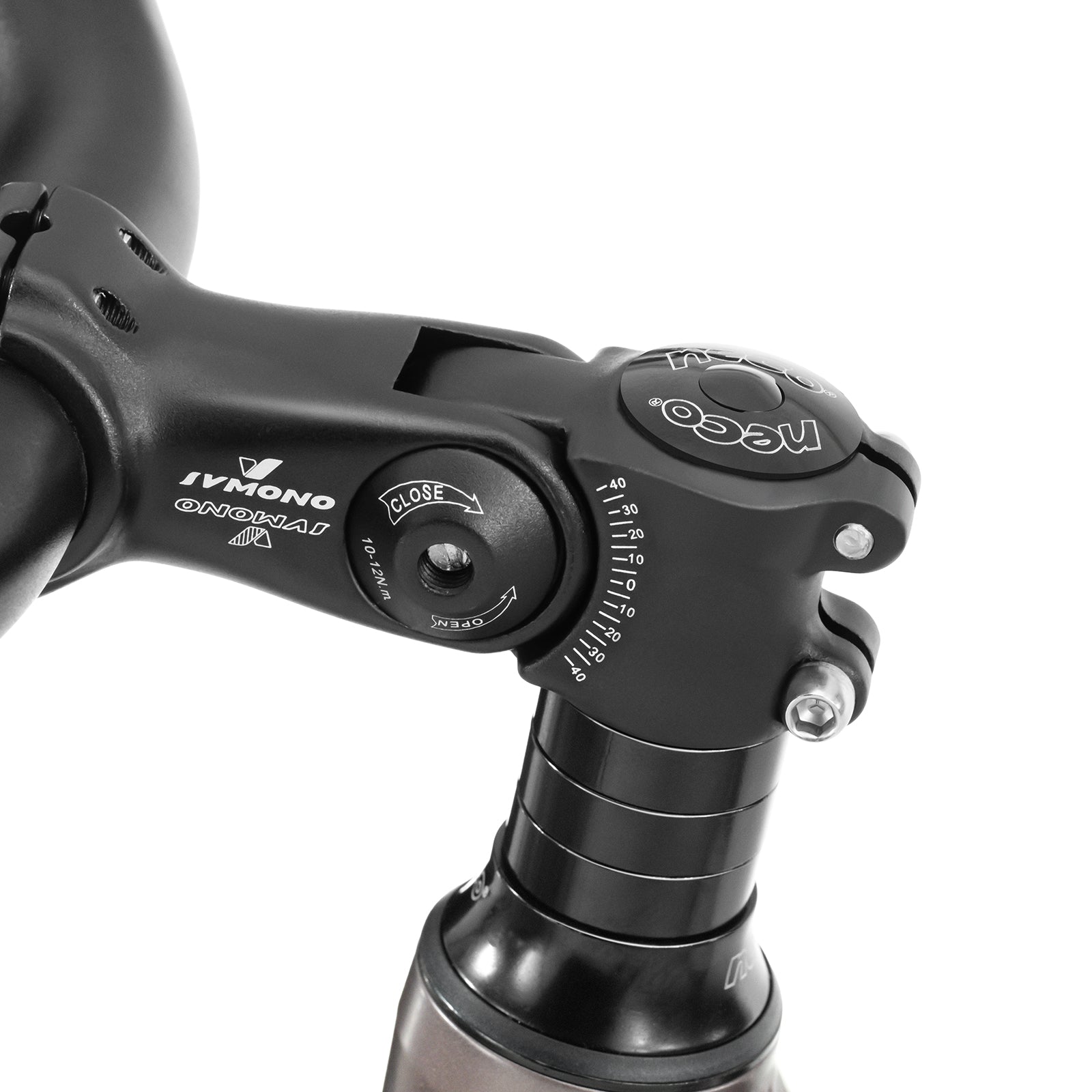

| B | Handlebar Height | 39.4"-45.7" |
| C | Wheelbase | 45.1" |
| D | Min. Seat Height | 33.1" |
| E | Max. Seat Height | 39.4" |
| F | Standover Height | 22.4" |
| G | Effective Top Tube | 21.7" |
| H | Wheel Size | 27.5" |
| I | Down Tube | 27.5" |
| J | Seat Tube | 18" |
| K | Angle b/w DT & ST | 47° |
| L | Head Tube Angle | 71° |
| M | Reach | 16.4" |
| N | Stack | 24.8" |
| O | Handlebar Length | 26.8" |
Specification
Basic Specification
- Brand: Touroll
- Model: MA2
- Color: Grey / Brown
- Size of Frame: 27.5"x18"
- Unfolded Size: 1870x680x1090mm
- Package Size: 1560x250x800mm
- Width of Handlebar: 680mm
- Gross Weight: 31.5kg
- Net Weight: 24.3kg
- Waterproof Level: IPX4
- Cut-off Speed: 25km/h
- Max Range: 100km (Assist Mode)
- Speed Levels of Assist Mode: 12/15/18/21/25km/h (Level 1-5)
- Material of Frame: Aluminum Alloy
- Recommended Rider Heights: 160-195cm (5'3" - 6'5")

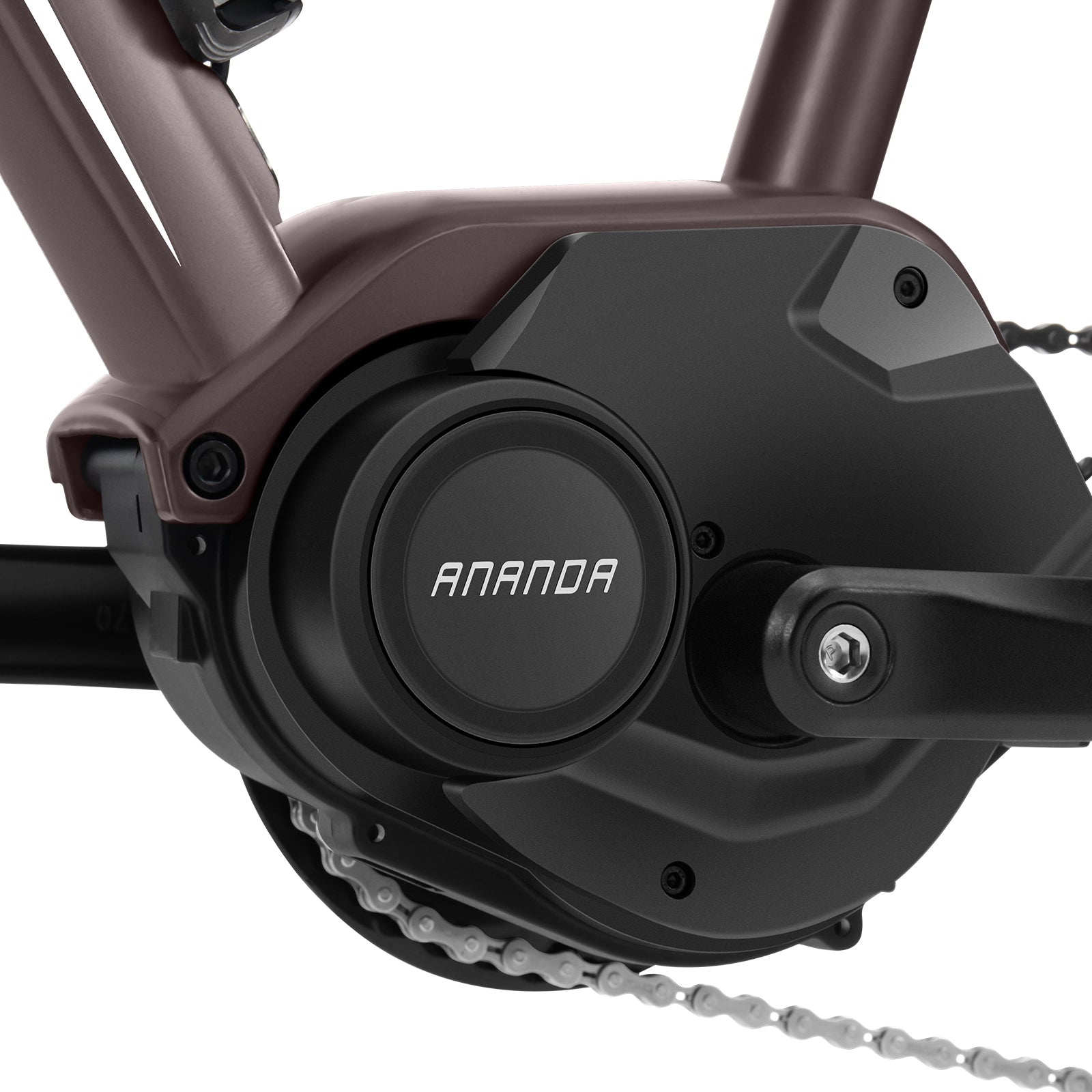

Motor
- Rated Power/Voltage: 250W/36V
- Max Output Torque: 70N.M

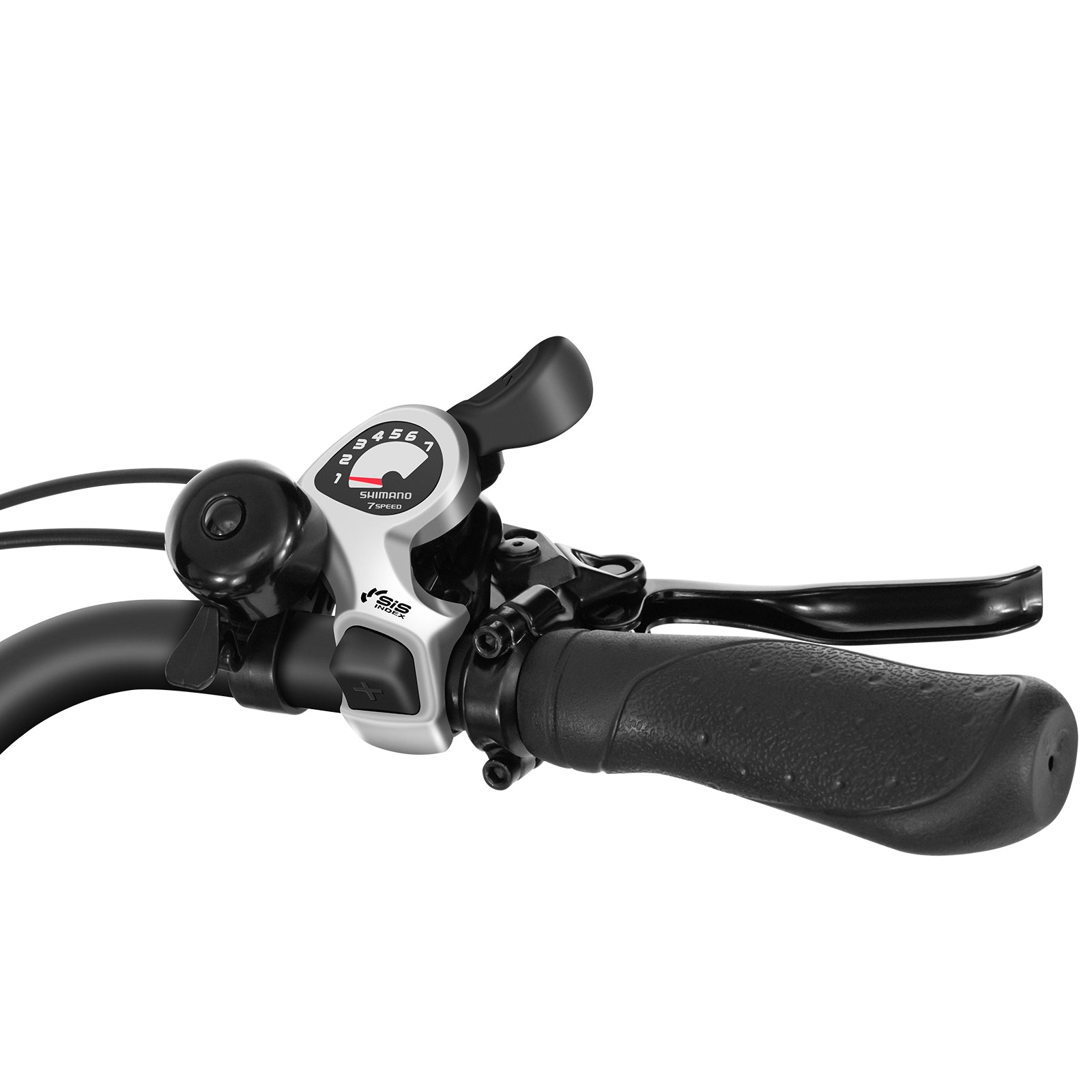

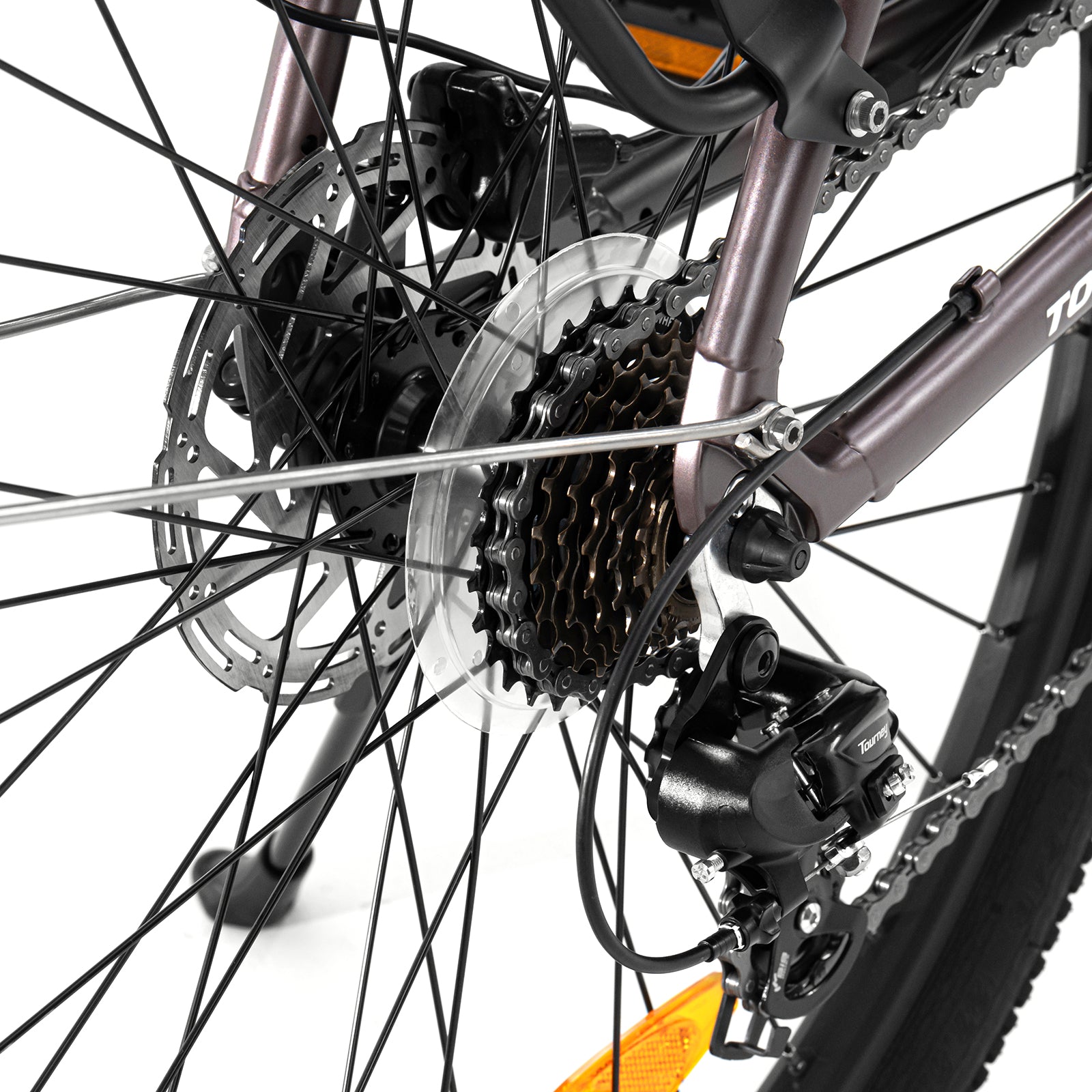

Derailleur
- Brand: Shimano
- Shifter Quantity: 7 (Rear)

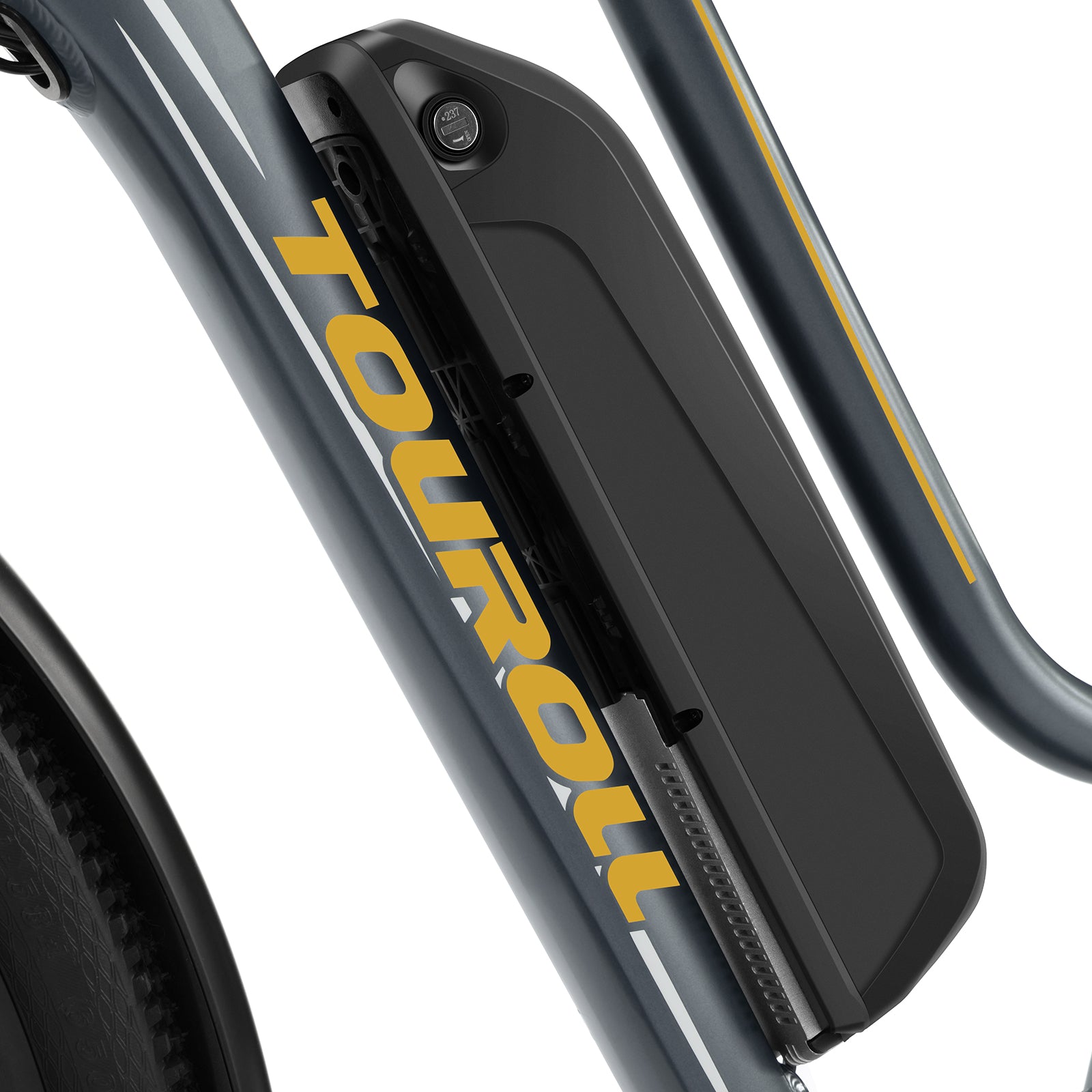

Battery
- Capacity/Voltage: 13Ah/36V
- Power Capacity: 468Wh
- Charging Time: 6-7h
- Protection System: Yes
Charger
- Input: 100-240V, ≤1.8A
- Output: 42V, 2.0A

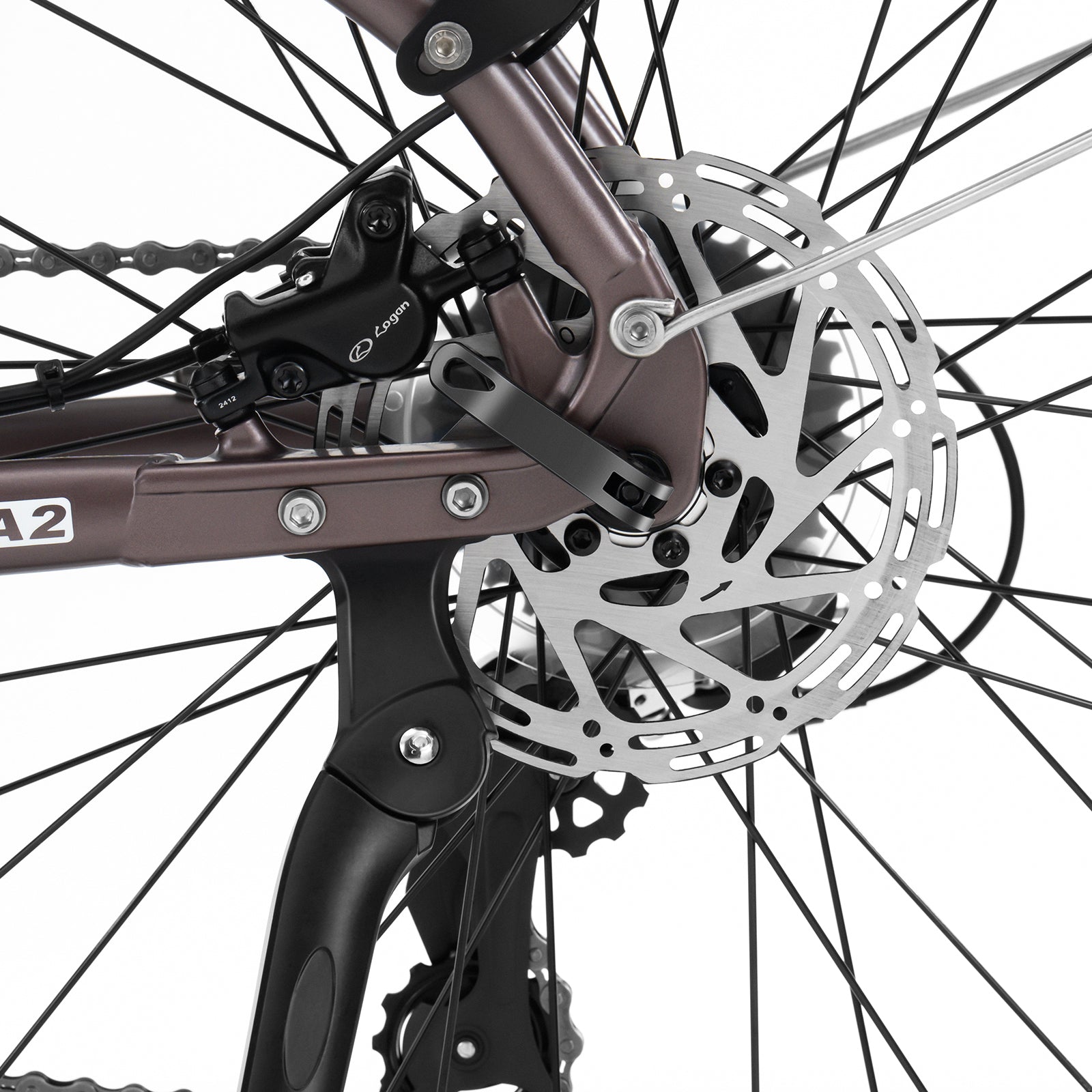

Brake
- Type: Hydraulic Disc Brake
- Outside Diameter: 160mm
- Thickness: 1.8mm
- Control: Brake front wheel by the left hand and rear wheel by the right hand in the EU; Brake front wheel by the right hand and rear wheel by the left hand in the UK;

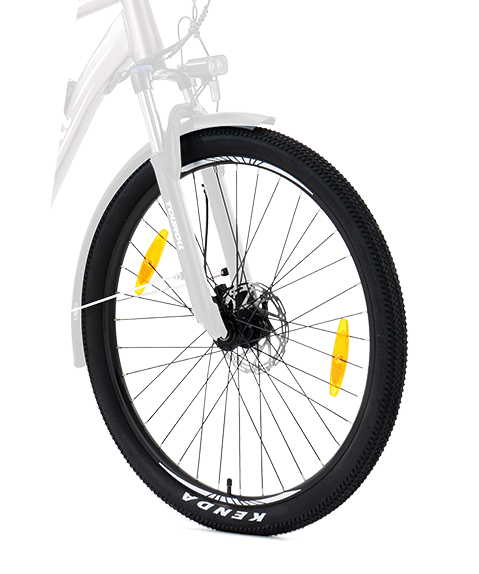

Tires
- Size: 27.5"x2.1"
- Type/Material: Pneumatic Rubber Tires
- Tire Pressure: 30~45PSI
- Best Tire Pressure: 35~40PSI

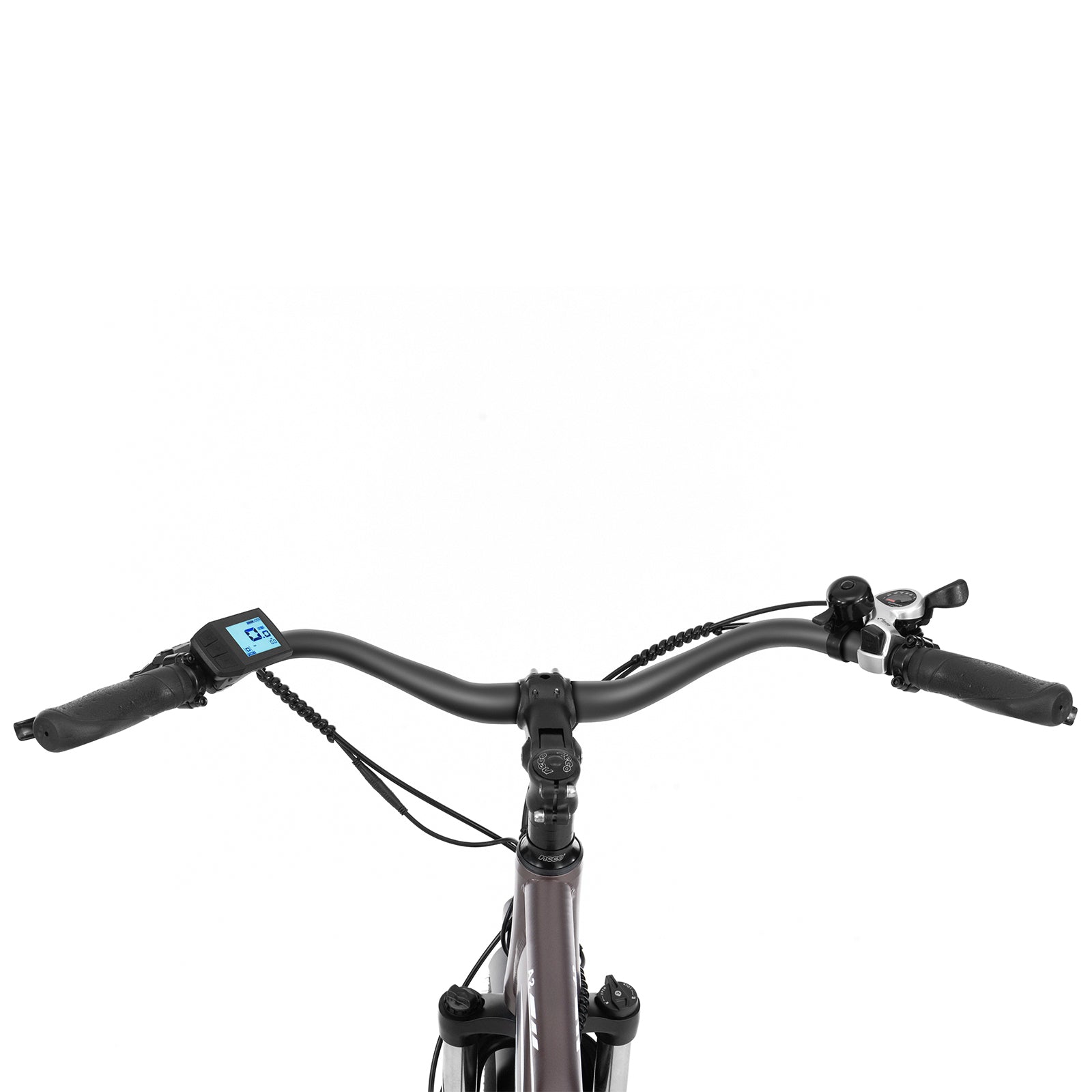

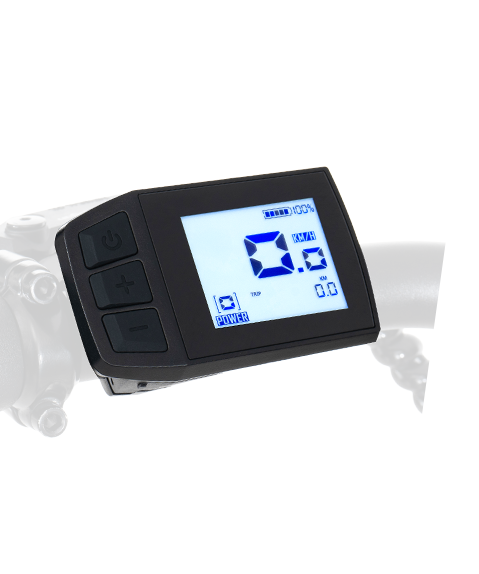

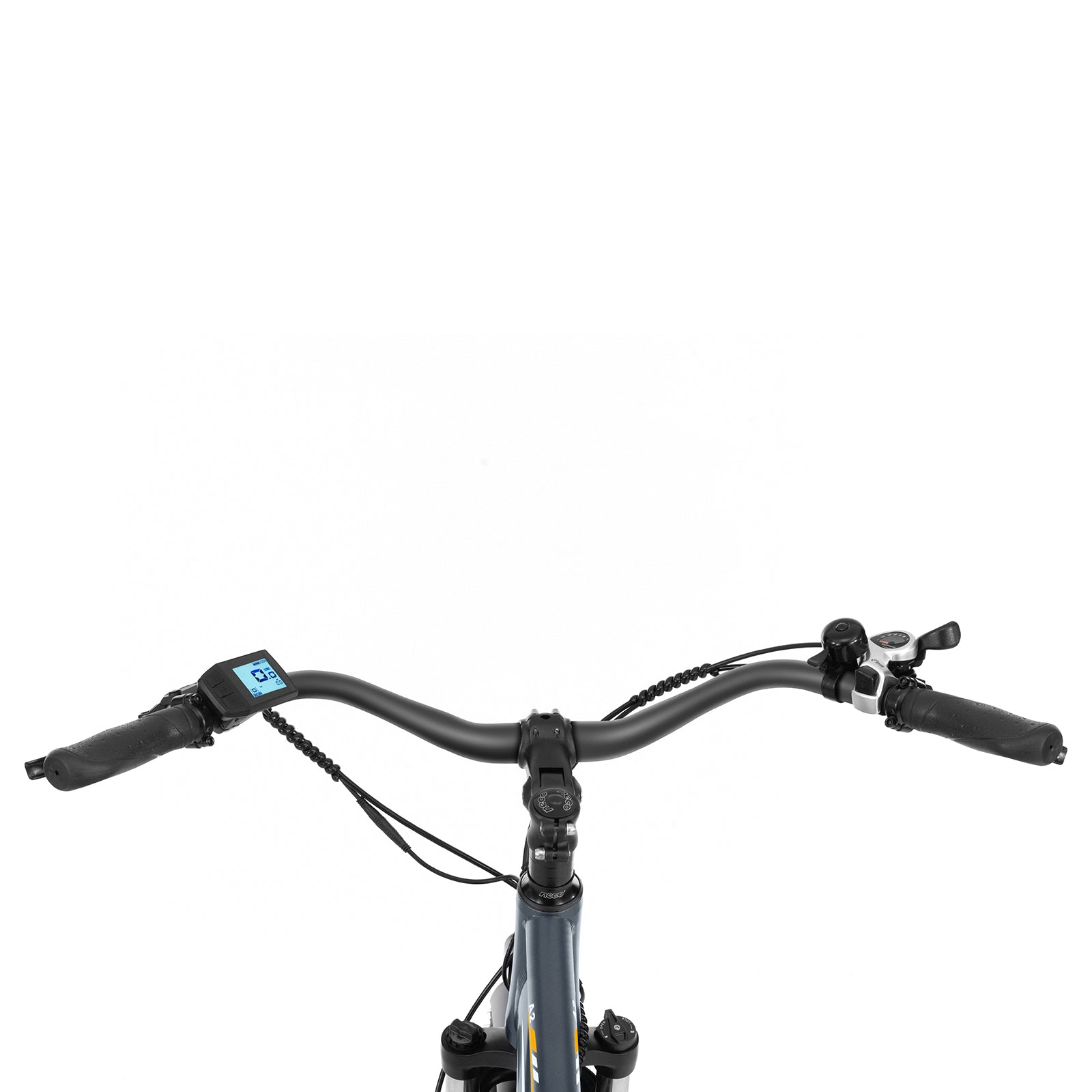

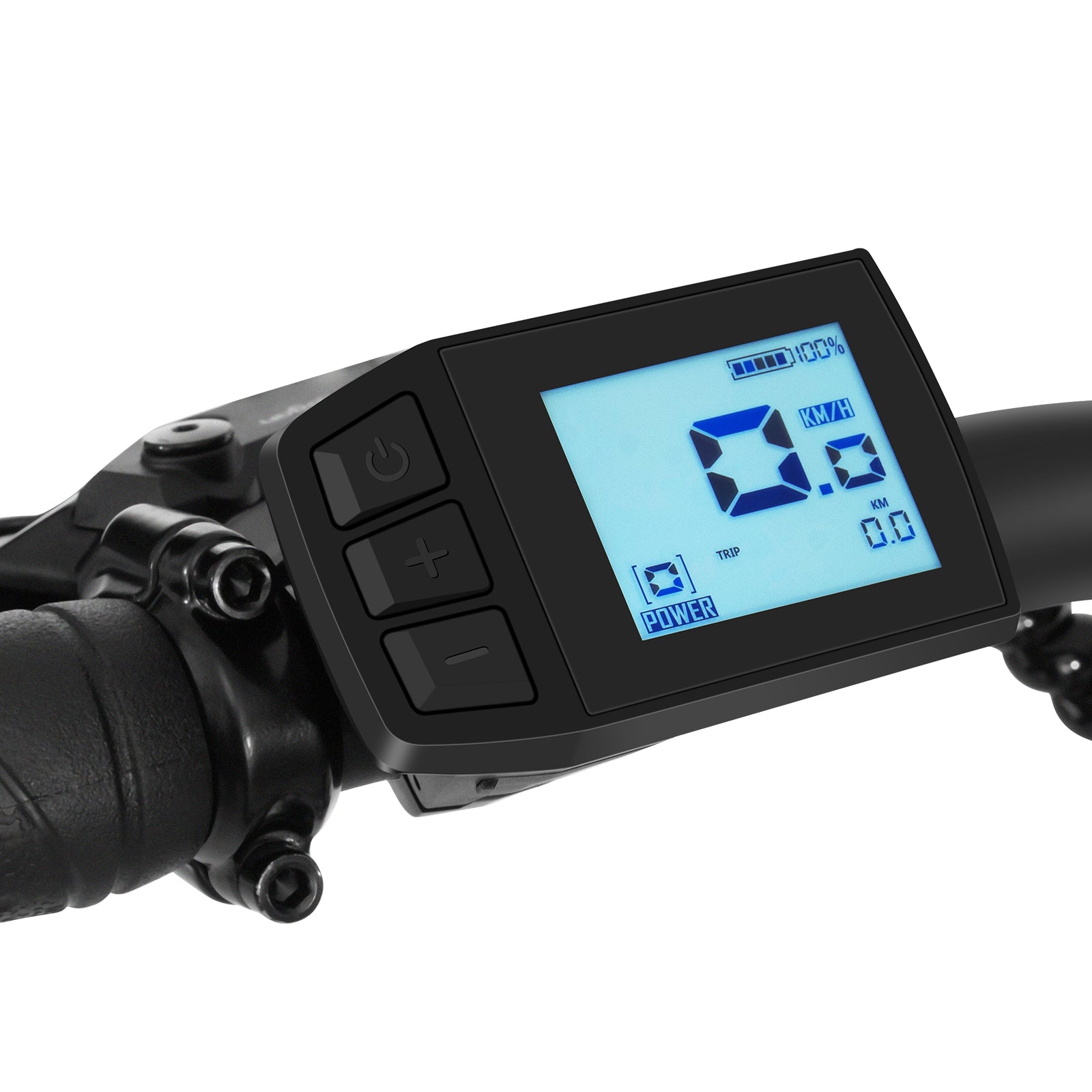

Display
- Type: LCD
- Size: 1.8"
Shock Absorption
- Type: Suspension Fork with Lockout
- Suspension Travel: 80mm
User Manual
Bike
User Manual
Charger
Pedals
Keys
Headlight
LCD Display
Tool Kit

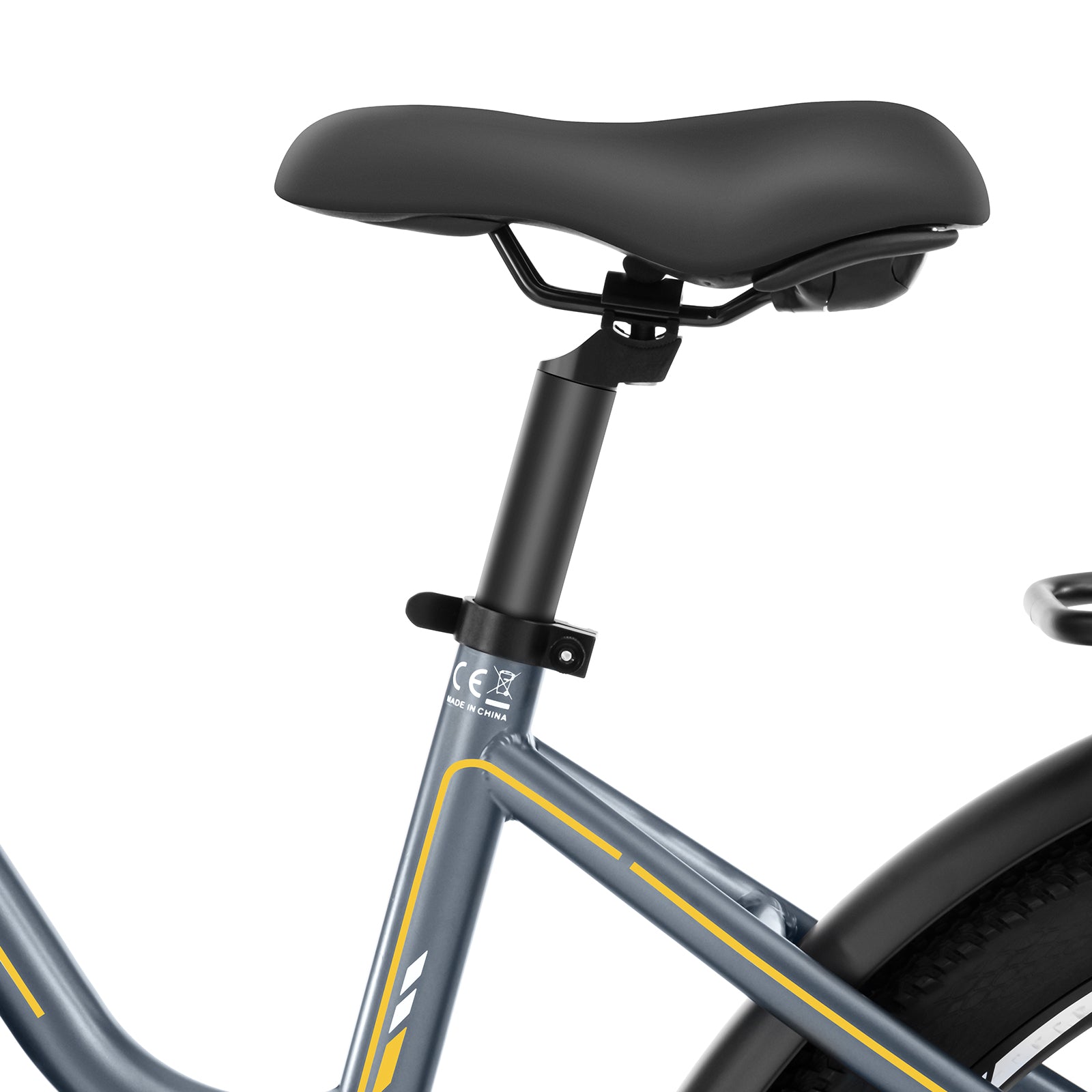

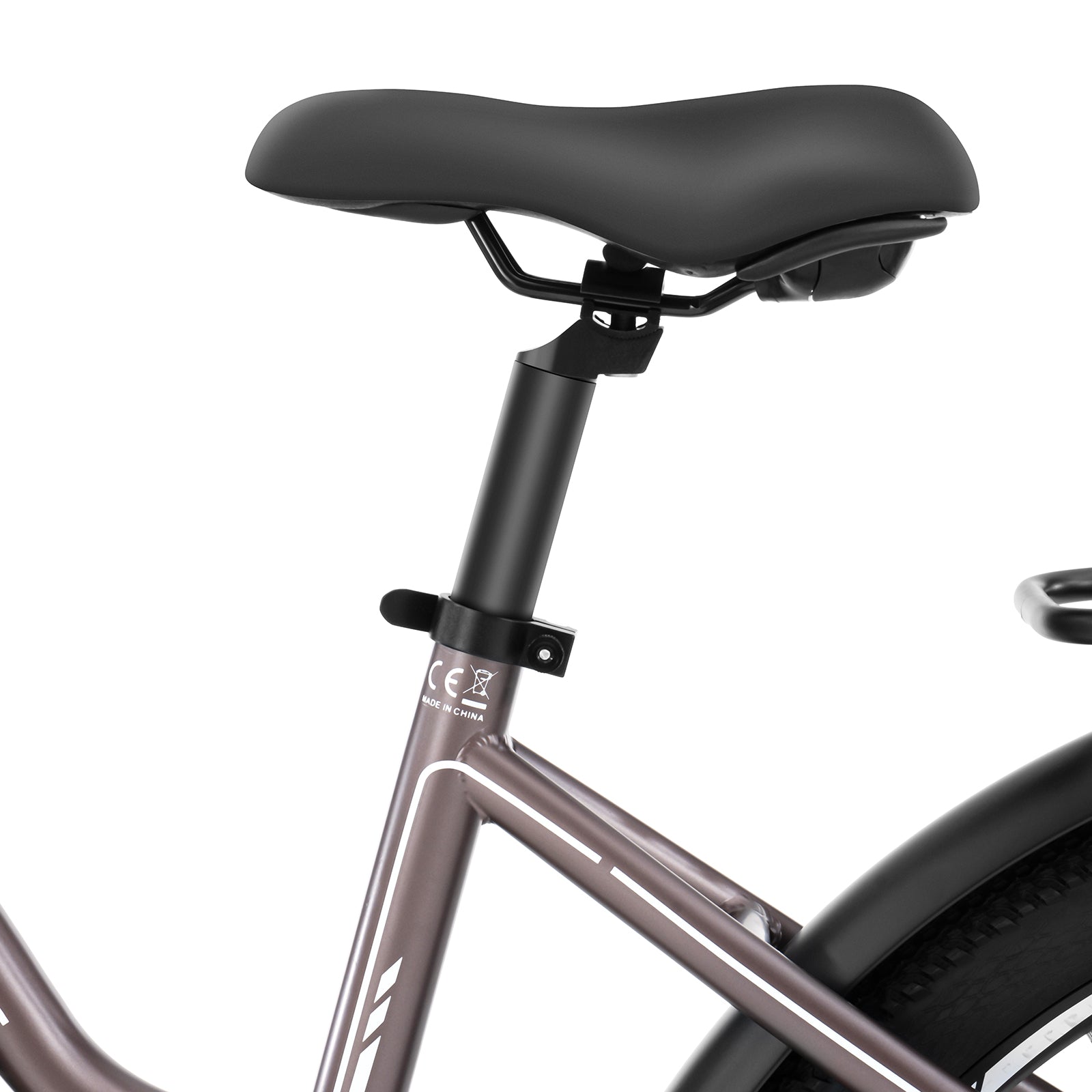

Saddle
Spoke Reflectors
Front Mudguard
FAQs
Please read our FAQs page to find out more.
What is the lowest seat height?
The lowest seat height is about 84 cm (33.1"), making it suitable for riders around 160 cm (5'3"). You should have no trouble reaching the ground comfortably while riding.
What brake does it use? Is it safe?
The MA22 features an advanced braking system with hydraulic disc brakes, ensuring powerful and stable braking performance.
Is the bike heavy?
It's about 24.3 kg of the whole bike. The sturdy build offers a smooth, stable ride, especially on rough terrain.
Can I ride this bike on a rainy day?
While the e-bike's electric components, including the battery, are water-resistant, we recommend avoiding heavy rain or extreme weather conditions. To protect your bike, it's best to keep it indoors during such conditions.
What is the recommended rider height?
The Touroll MA2 is designed for riders between 160 cm and 195 cm (5'3" to 6'5"). Thanks to the adjustable seat and handlebar, you can easily customize your riding position for maximum comfort.
What is the maximum rider weight?
The maximum recommended rider weight is 120 kg. This ensures optimal performance and the longevity of the bike. The e-bike is built to handle this weight comfortably without compromising on stability.
How do I charge the battery?
You can charge the battery either on or off the bike. Simply connect the charger to the battery and plug it into a standard wall outlet. Charging is hassle-free and convenient.
Can I take off the battery?
Yes, the battery is removable for convenient charging. The battery is equipped with a key that allows you to lock it onto the bike, ensuring its safety when you are not present. This feature provides you with a greater sense of peace of mind.
Do I need to assemble the bike when it arrives?
The bike will arrive about 85% assembled in a standard bike box. You'll only need to attach the front wheel, pedals, saddle, and handlebar. Don't worry—it's easy! You can follow our step-by-step video guide on YouTube or user manual for assistance.
What if there are any quality issues with the bike?
Touroll offers professional after-sales service and technical support. Local maintenance services are available in Europe. For detailed warranty information, please click here.
