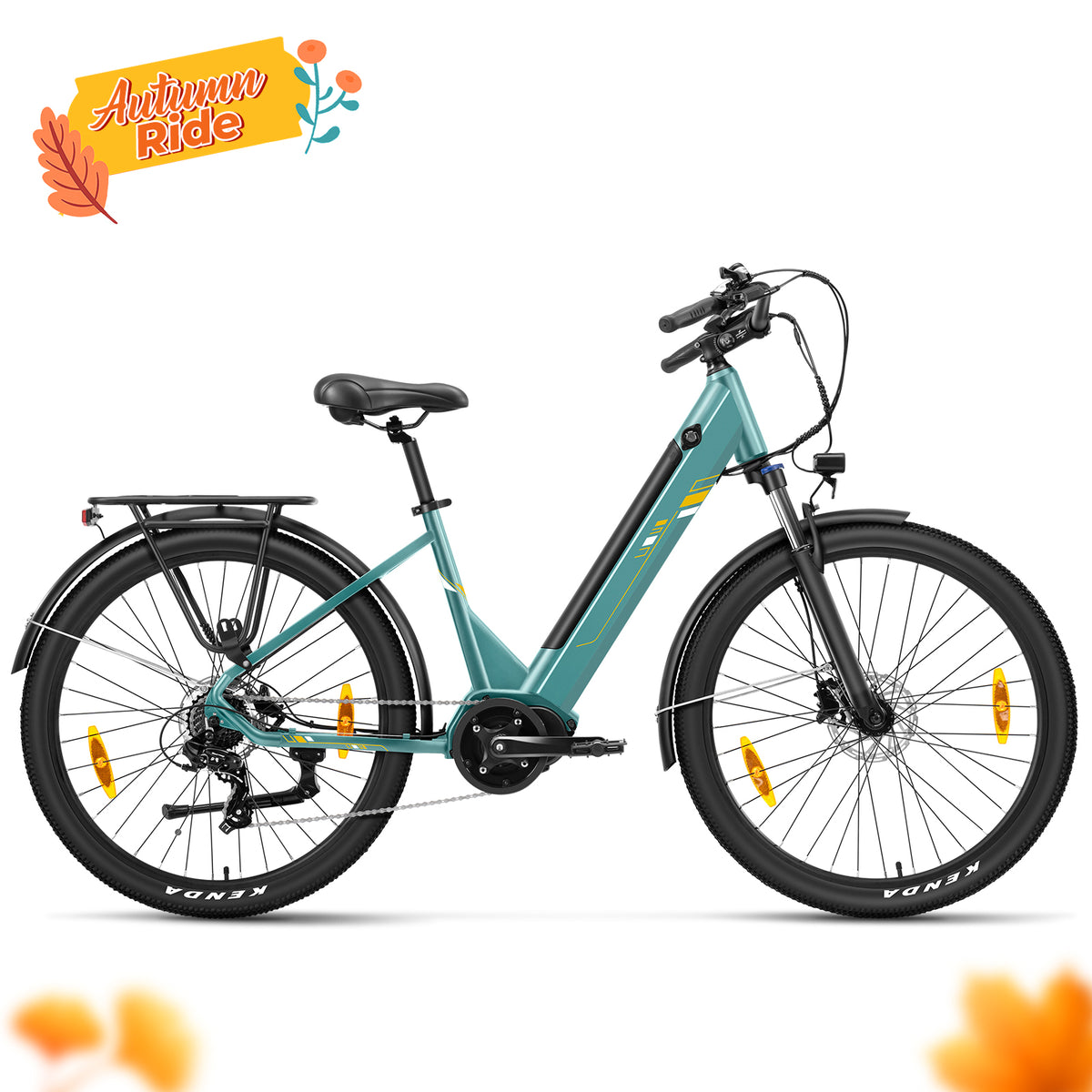

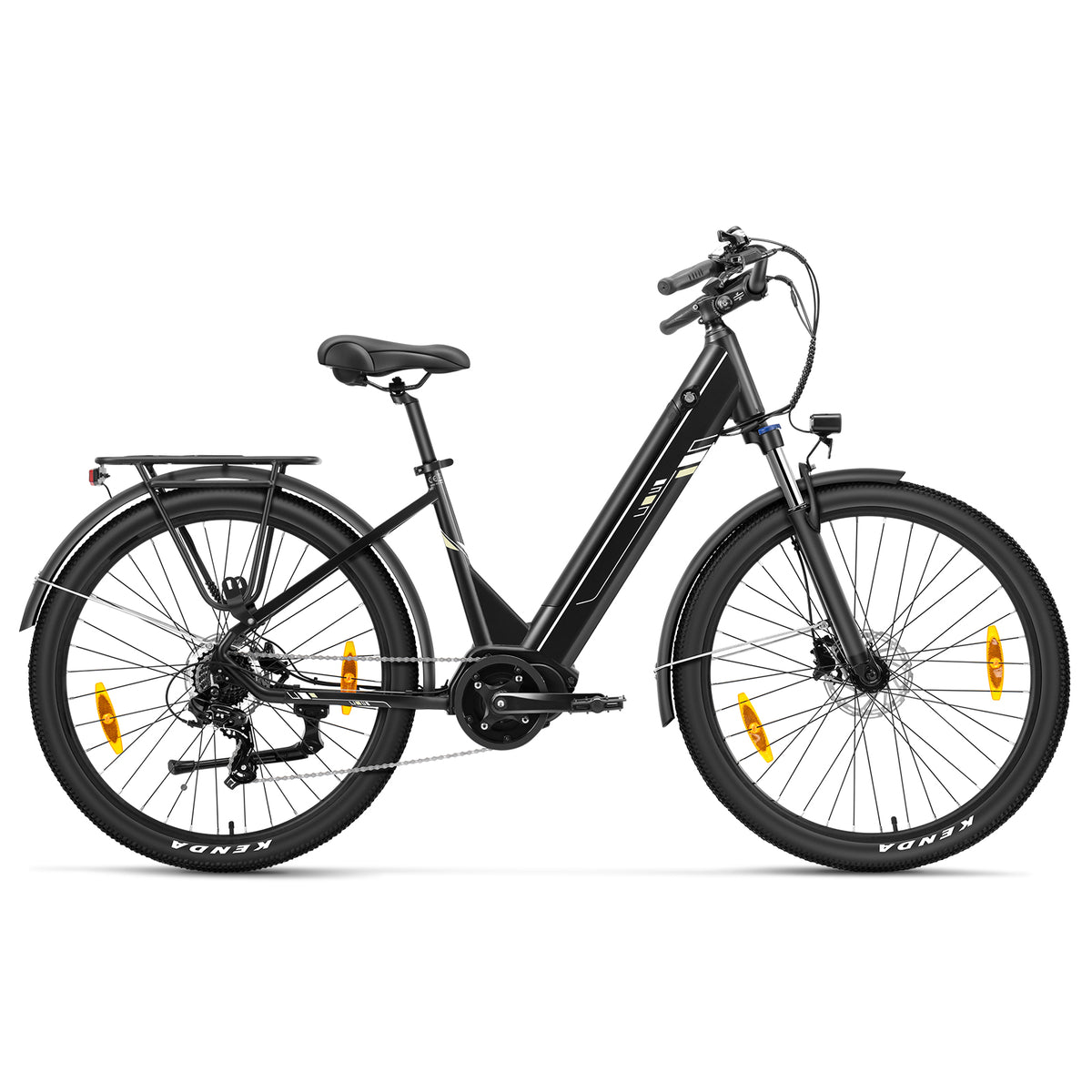

Touroll Urbano 3 Mid-Drive Electric Bike
Mid-Drive Motor: Your Stronger Partner
Effortlessly tackle diverse terrains and enjoy a more seamless and efficient ride!
Ergonomic Design for Comfort
Adjustable seat height and stem angle allow you to ride in the most comfortable position.
Ride Data at a Glance
Easily monitor all trip details with a clear LCD screen!
Thoughtful Design
Ergonomic Curved Handlebars
Luggage Rack
Comfortable Saddle
27.5"×2.1" Bigger Tires
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Our bikes are shipped from warehouses in Europe. It usually takes around 3-7 working days for shipment.
Customer Support
Please send email to support@touroll.com if you have any questions.
Warranty
We provide 1-Year warranty service.
14 Days Return
Worry-Free Promise.
| A | Total Length | 73.6" |
| B | Handlebar Height | 42.5-44.9" |
| C | Wheelbase | 45.7" |
| D | Min. Seat Height | 33.1" |
| E | Max. Seat Height | 41.3" |
| F | Standover Height | 17.7" |
| G | Effective Top Tube | 23.6" |
| H | Wheel Size | 27.5" |
| I | Down Tube | 28.3" |
| J | Seat Tube | 17.5" |
| K | Angle b/w DT & ST | 51.8° |
| L | Handlebar Length | 27.2" |
| M | Reach | 15" |
| N | Stack | 27.8" |
| O | Head Tube Angle | 71.5° |
Specification
Basic Specification
Unfolded Size: 1870×690×1160 mm
Size of Frame: 27.5 × 17.5 in
N.W.: 25.6kg
Length of Handlebar: 690mm
Waterproof Level: IPX5
Material of Frame: Aluminum Alloy
Max Range: 120km
Cut-off Speed: 25km/h
Speed Levels of Assist Mode: 12/15/18/21/25 km/h (Level 1-5)
Recommended Rider Heights: 160-195cm (5' 3"-6' 5")
Motor
Type: Mid-drive Motor
Rated Power/Voltage: 250W/36V
Max Output Torque: 70N.M
Derailleur
Brand: Shimano
Number of Gears: 7 (Rear)
Battery
Capacity/Voltage: 13Ah/36V
Power Capacity: 468Wh
Charging Time: 4-5h
Protection System: Yes
Brake
Type: Hydraulic Disc Brakes
Outside Diameter: 160mm
Thickness: 2.0mm
Tires
Size: 27.5 × 2.1 in
Type: Pneumatic Rubber Tires
Tire Pressure: 40-70PSI
Best Tire Pressure: 45-65PSI
Display
Size: 1.8"
Type: LCD
User Manual
Bike
User Manual
Charger
Pedals
Keys
Headlight
Tool Kit
Front Mudguard
Spoke Reflectors
FAQs
Please read our FAQs page to find out more.
What’s the difference between mid-drive motors and hub motors?
Mid-drive motors are positioned at the center of the bike frame, offering improved balance and weight distribution. They also allow for more precise control over gearing and pedaling cadence. In contrast, hub motors are integrated into the wheel hub and deliver power directly to the wheel. While they offer a more direct drive system, they can impact the bike’s overall balance and handling.
What are the advantages of a mid-drive bike?
Mid-drive motors deliver optimal weight distribution and handling stability by positioning at the bicycle's central frame near the pedals. Leveraging the bike's gear system, they maximize power efficiency for extended range. Additionally, these motors generate higher torque output, enhancing hill-climbing capability and performance across varied terrains.
What type of sensor do you use?
Your e-bike will arrive partially assembled (about 85%) and packaged in a standard bike box. The parThis e-bike is equipped with two types of sensors. A torque sensor is integrated into the motor’s bottom bracket to respond to your pedaling force, while a speed sensor is mounted on the rear wheel to monitor your riding speed.ts that need to be mounted include the front wheel, front mudguard, headlight, saddle, pedals, and handlebars. You can check the manual for a step-by-step guide.
What is the recommended height of riders?
The Touroll Urbano 3 is designed for riders between 160 cm and 195 cm (5'3" to 6'5"). The adjustable seat and stem allow you to customize your riding position for maximum comfort.
Is the bike heavy?
It's about 26kg of the whole bike. While it’s slightly heavier than other kinds of e-bikes, this is the typical weight for a 20-inch fat tire e-bike, ensuring enhanced stability across terrains.
Is the battery removable?
Yes, the battery is fully removable, allowing you to charge it on or off the bike at your convenience. It can be securely locked on your bike with the key, ensuring its safety when you are not present.
Does the e-bike come with a charger?
Yes, the e-bike comes with a charger included in the package.
How do I recharge the battery pack?
You can charge the battery either on or off the bike. Just connect the charger to the battery and plug it into a standard wall outlet.
What kind of assembly is required?
The e-bike will arrive about 85% assembled in a standard bike box. You'll only need to attach the handlebar, front wheel, saddle, and pedals. Don't worry! The assembly process is extremely straightforward. You can follow our step-by-step video guide on YouTube or the user manual for assistance.
What is the maximum rider weight?
The maximum recommended rider weight is about 120 kg, ensuring optimal performance.
Can I ride this bike on a rainy day?
Although they are water-resistant, the e-bike's electric components (including the battery) are not fully waterproof. We recommend avoiding heavy rain or extreme weather conditions. To protect your bike, it's best to keep it indoors under such conditions.
